Appleton adr20033rs

Overview

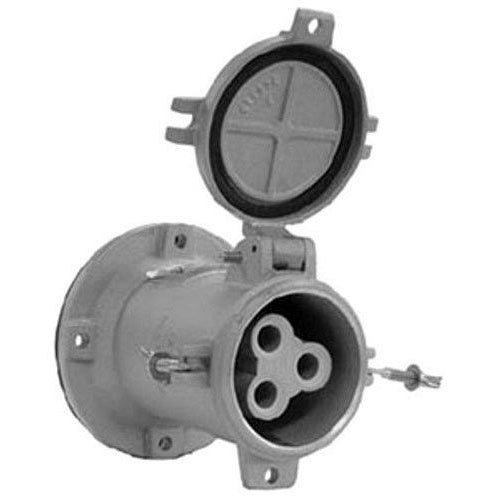

Powertite® ADR20033RS 3-Phase S Grounding Style 1 Polarized Weatherproof Pin and Sleeve Receptacle With Flip Lid, Reverse Service, 600 V AC/250 V DC, 200 A, 3 Poles, 3 Wires

Product Specifications

• Catalog Number: ADR20033RS
• UPC / GTIN: 781381711722
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly-resistant to hydrocarbon deterioration and is self extinguishing; Locking screw and slot prevents plug cable collar from "backing off"; Contacts exert constant pressure along entire contact surface and provide electrical continuity; Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking; Controlled length contacts ensure that ground makes first and breaks last for added safety; Water-resistant
• Amperage Rating: 200 A
• Country of Origin: Mexico
• Dimensions: 6.63 in H x 8 in D
• Frequency Rating: 50/400 Hz
• Horsepower: 50 HP
• Material: Copper-Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 3
• Number of Wires: 3
• Series: ADR
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Pressure Wire
• Type: 3-Phase S Grounding Style 1 Polarized Weatherproof
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
