Appleton adre303475rs

Overview

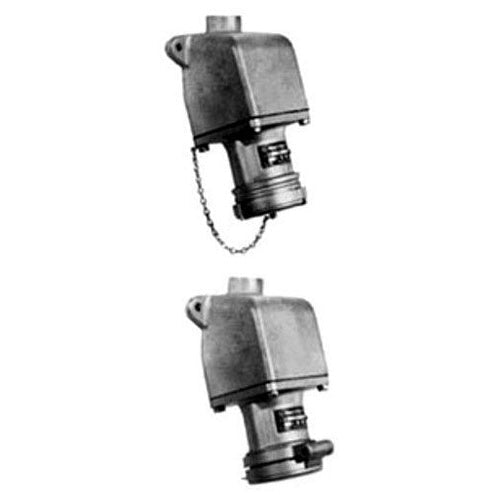

Powertite® ADRE3034-75-RS 3-Phase Grounding Style 2 Reverse Service Pin and Sleeve Receptacle With AEE Mounting Box, 600 V AC/250 V DC, 30 A, 4 Poles, 3 Wires

Product Specifications

• Catalog Number: ADRE303475RS
• UPC / GTIN: 781381710367
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell and extra pole grounding style 2; Natural finish glass filled polyester insulating blocks; 9/32 in dia wire recess; Designed to supply power to portable or fixed electrical equipment; Suitable for use in locations where a weatherproof enclosure is required; Weatherproof spring door, brass with beryllium copper springs
• Amperage Rating: 30 A
• Cord Diameter: 1/2 to 1-1/4 in
• Country of Origin: Mexico
• Dimensions: 6.88 in H x 5 in W x 3.45 in D
• Frequency Rating: 50 to 400 Hz
• Horsepower: 20 HP
• Hub Size: 3/4 in
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Pressure Wire
• Type: 3-Phase Grounding Style 2 Reverse Service
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
