Appleton adre6044125rs

Overview

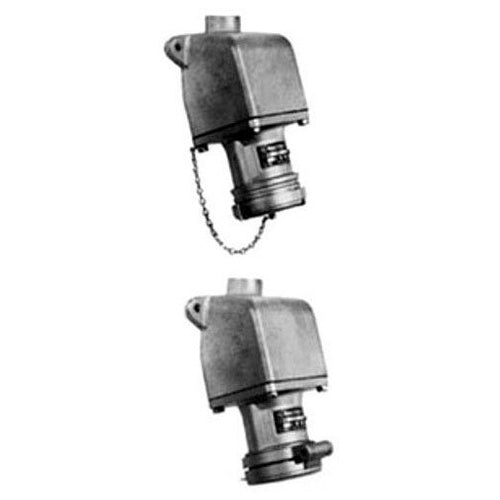

Powertite® ADRE6044-125-RS 3-Phase Grounding Style 1 Reverse Service Pin and Sleeve Receptacle With AEE Mounting Box, 600 V AC/250 V DC, 60 A, 4 Poles, 4 Wires

Product Specifications

• Catalog Number: ADRE6044125RS
• UPC / GTIN: 781381710817
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell grounding style 1; Natural finish glass filled polyester insulating blocks; 5/16 in dia wire recess; Designed to supply power to portable or fixed electrical equipment; Suitable for use in locations where a weatherproof enclosure is required; Weatherproof spring door, brass with beryllium copper springs
• Amperage Rating: 60 A
• Cord Diameter: 1/2 to 1-1/4 in
• Country of Origin: Mexico
• Dimensions: 9.75 in H x 6.38 in W x 4.73 in D
• Frequency Rating: 50 to 400 Hz
• Horsepower: 30 hp
• Hub Size: 1-1/4 in
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 4
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Pressure Wire
• Type: 3-Phase Grounding Style 1 Reverse Service
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
