Appleton aepmcgbl

Overview

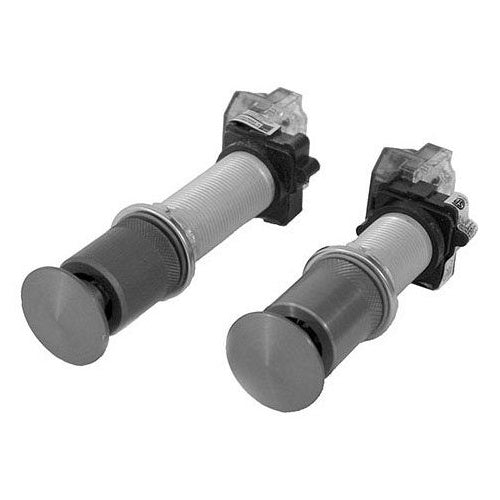

Appleton AEPMCGBL 2-Normally Open Green Mushroom Pushbutton

Product Specifications

• Part Number: AEPMCGBL
• UPC / GTIN: 78138191438
• UPC: 78138191438
• Additional Information: BARREL TYPE LONG
• Brand Name: Appleton.
• Type: MUSHROOM
• Size: 3/4 INCH
• Operation Type: MAINTAINED
• Contact Configuration: 2NO
• Cap/Lens Color: GREEN
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• CATALOG DESCRIPTION: EXPLOSIONPROOF NON-ILLUMINATED PUSHBUTTON, TYPE MUSHROOM, LONG BARREL, OPERATION TYPE MAINTAINED, CONTACT CONFIGURATION 2NO, CONTACT RATING 600 VAC 10 AMPERE, CAP/LENS COLOR GREEN, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203/E77137, CSA C22.2, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, EXPLOSIONPROOF, APPLICATION HAZARDOUS LOCATION
• Full Technical Description: Mushroom Head, Long Barrel Type; 2NO Contact Configuration; Maintained Operation Type; 600 Volt AC 10 Amp Contact Rating; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG Enclosure; Green Cap/Lens Color; Overall Dimension 5.38 Inch Length X 2 Inch Width; Material Stainless Steel (Shaft); Application Hazardous Location; Applicable Standard Nec/Cec; AEPMC Model
• Made in USA: Yes
• Manufacturer: Appleton Electric
• Product Description: Appleton AEPMCGBL 2-Normally Open Green Mushroom Pushbutton
• UNSPSC: 39122216
• UPC 12 Digit: 781381914383
