Appleton aja40033400rs

Overview

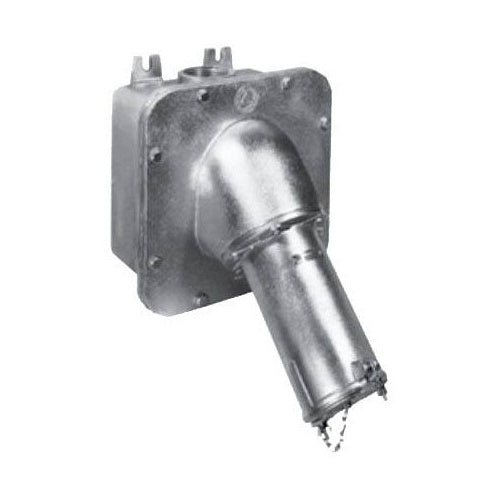

Appleton AJA40033400RS Receptacle w/Mounting Box

Product Specifications

• Part Number: AJA40033400RS
• UPC / GTIN: 78138132476
• UPC: 78138132476
• Grounding Style: 1, Shell
• Door Type: Clamp Cover
• Hub Type: 4 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Contact Material Copper
• Brand Name: Powertite[R]
• Type: Polarized, Reverse Service
• Constructional Feature: Raintight
• Voltage Rating: 600 VAC 3-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 400 Ampere
• Number of Poles: 3
• Number of Wires: 3
• CATALOG DESCRIPTION: APPLETON POWERTITE GROUNDING STYLE 1 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 3, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, MOUNTING: SURFACE MOUNT WITH 4 IN HUB, CONNECTION: SOLDER WIRE TERMINAL, TEMPERATURE RATING: -40 TO 107 DEG C, FINISH: EPOXY POWDER COAT, DIMENSIONS: 15.88 IN WIDTH X 22 IN HEIGHT X 24-1/4 IN DEPTH, STANDARD: UL 1682, UL 1686, UL 50E, UL LISTED: E145916, E145917, CSA STANDARD: C22.2 NO. 182.1, CSA CERTIFIED: 065179, NEMA FB11, FOR AP40033E PLUG
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 1-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 3 Pole(S); Weatherproof, Rain Tight; 4 Inch Hub Type; Clamp; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 400 to 1000 MCM; Wire Recess Diameter 0.84 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 4/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/16
• Manufacturer: Appleton Electric
• Product Description: Appleton AJA40033400RS Receptacle w/Mounting Box
• UNSPSC: 39121406
• UPC 12 Digit: 781381324762
