Appleton aja40034400rs

Overview

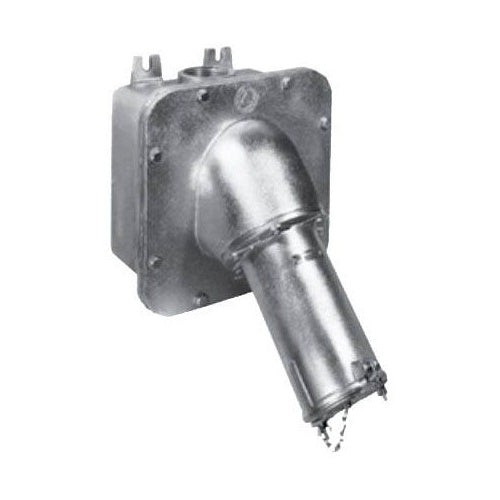

Appleton AJA40034400RS Receptacle w/Mounting Box

Product Specifications

• Part Number: AJA40034400RS
• UPC / GTIN: 78138132477
• UPC: 78138132477
• Grounding Style: 2, Shell, Extra Pole
• Door Type: Clamp Cover
• Hub Type: 4 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Additional Information: Application Compressor, Motor Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding; Contact Material Copper
• Brand Name: Powertite[R]
• Type: Polarized, Reverse Service
• Constructional Feature: Raintight
• Voltage Rating: 600 VAC 3-Phase at 50 to 400 Hz, 250 VDC
• Current Rating: 400 Ampere
• Number of Poles: 4
• Number of Wires: 3
• CATALOG DESCRIPTION: POWERTITE GROUNDING STYLE 2 RECEPTACLE WITH AJA MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPE
• Full Technical Description: Positive Polarization, Reverse Service Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 4 Pole(S); Weatherproof, Rain Tight; 4 Inch Hub Type; Clamp; Shell, Extra Pole, 2 Grounding Style; POWERTITE[TM] Brand; Wire Size 400 to 1000 MCM; Wire Recess Diameter 0.84 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 4/Fb-11; Ambient Temperature Rating -13 to 104 Deg F; Includes Aja Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA Nec/Cec
• Manufacturer: Appleton Electric
• Product Description: Appleton AJA40034400RS Receptacle w/Mounting Box
• UNSPSC: 39121406
• UPC 12 Digit: 781381324779
