Appleton aja40044400rs

Overview

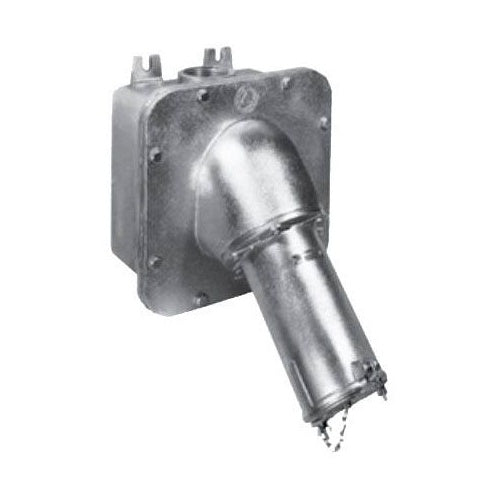

Powertite® AJA40044400RS 3-Phase Grounding Style 1 Reverse Service Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 400 A, 4 Poles, 4 Wires

Product Specifications

• Catalog Number: AJA40044400RS
• UPC / GTIN: 781381324786
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell grounding style 1; Natural finish glass filled polyester insulating blocks; 0.84 in dia wire recess; Designed to supply power to portable or fixed electrical equipment; Suitable for use in locations where a weatherproof enclosure is required; Has feed-through 4 in tapped openings, supplied with one 4 in to 3 in reducer and one 4 in close-up plug
• Amperage Rating: 400 A
• Cord Diameter: 1.875 to 2.5 in
• Country of Origin: Mexico
• Frequency Rating: 50 to 400 Hz
• Hub Size: 4 in
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4
• Number of Poles: 4
• Number of Wires: 4
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Solder Wire
• Type: 3-Phase Grounding Style 1 Reverse Service
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
