Appleton AMPa443

Overview

Appleton AMPA443 4X4X3 Aluminum Mounting Plate

Product Specifications

• Part Number: AMPA443
• UPC / GTIN: 78138190326
• UPC: 78138190326
• Type: Mounting Plate

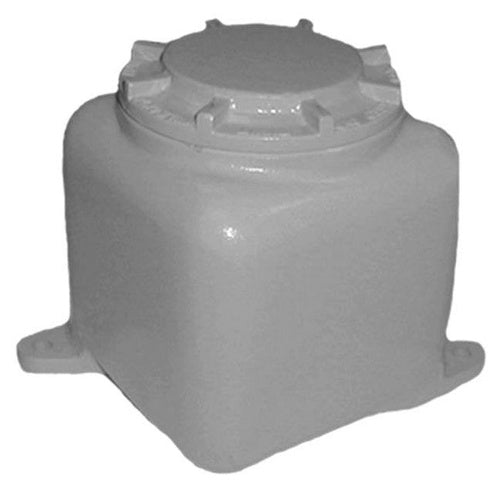

• Used On: AGUB-443A Instrument/Meter Enclosure
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Additional Information: Material Aluminum
• CATALOG DESCRIPTION: ENCLOSURE MOUNTING PLATE, TYPE STANDARD MOUNTING PLATE, USED ON AGUB-443A INSTRUMENT/METER ENCLOSURE, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/4X/7BCD/9EFG, SIZE 5.31 INCH L X 5.31 INCH W X 5.19 INCH H, MATERIAL ALUMINUM
• Full Technical Description: Mounting Plate, Standard Type; Agub/Ngub Instrument and Meter Enclosure Used on; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7BCD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Overall Dimension 4 Inch X 4 Inch X 3 Inch; Material Aluminum; Applicable Standard Nec/Cec, UL 1203, UL (Canada and Us), CSA C22.2
• Made in USA: Yes
• Manufacturer: Appleton Electric
• Product Description: Appleton AMPA443 4X4X3 Aluminum Mounting Plate
• UNSPSC: 39121302
• UPC 12 Digit: 781381903264
