Appleton arc3033bcrs

Overview

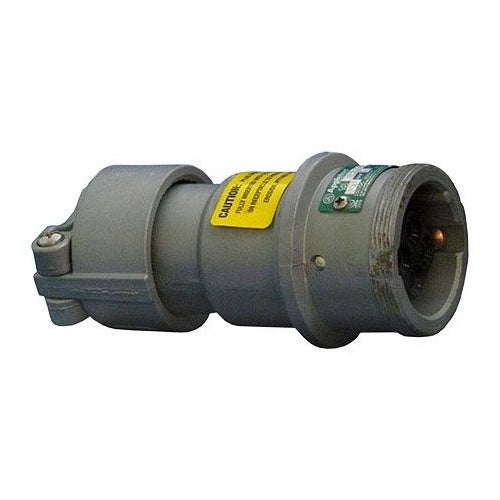

Powertite® ARC3033BCRS ARC 3-Phase Grounding Style 1 Weatherproof Pin and Sleeve Connector Body With Reverse Service, 600 V AC/250 V DC, 30 A, 3 Poles, 3 Wires

Product Specifications

• Catalog Number: ARC3033BCRS
• UPC / GTIN: 781381710718
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell grounding style 1; Designed to supply power to portable or fixed electrical equipment; Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking; Natural finish glass filled polyester insulating blocks; 9/32 in dia wire recess; Locking screw and slot prevents plug cable collar from "backing off"; Controlled length contacts ensure that ground makes first and breaks last for added safety; Contacts exert constant pressure along entire contact surface and provide electrical continuity; Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing; Water resistant
• Amperage Rating: 30 A
• Country of Origin: Mexico
• Dimensions: 10.5 in L x 3.13 in W
• Frequency Rating: 50/400 Hz
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 3
• Number of Wires: 3
• Series: ARC
• Temperature Rating: -40 to 225 deg F
• Terminal Type: Pressure Wire
• Type: 3-Phase Grounding Style 1 Weatherproof
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
