Appleton bl400a

Overview

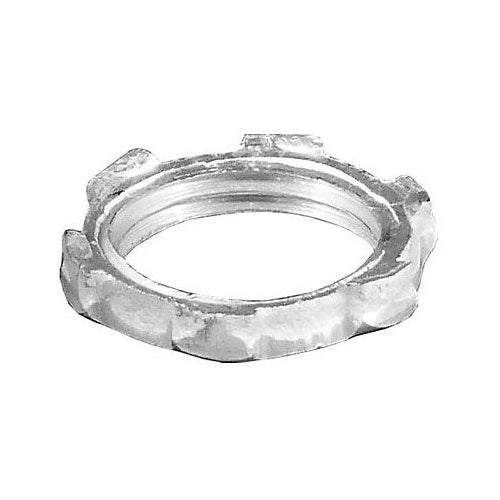

Appleton BL400A Aluminum Locknut

Product Specifications

• Part Number: BL400A
• UPC / GTIN: 78138170465
• UPC: 78138170465
• Additional Information: Applicable Standard NEMA FB-1; Application Used to Secure an Ordinary Nut from Working Loose by Locking Itself when Screwed Down Tight
• Model: BL
• Trade Size: 4 Inch
• Diameter: 5.44 Inch
• Thickness: 0.38 Inch
• Material: Aluminum
• Installation: Threaded
• Approval: UL 514B, CSA C22.2
• CATALOG DESCRIPTION: LOCKNUT, MATERIAL OF CONSTRUCTION: ALUMINUM, FINISH: ALUMINUM, NUT TYPE: LOCKNUT, THREAD SIZE: 4 IN, HEIGHT: 0.38 IN, WIDTH: 5.44 IN, SIZE: 4 IN, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA CERTIFIED 065178, NEMA FB-1
• Full Technical Description: Aluminum Material; Threaded Installation; UL 514B, CSA C22.2 Approval; 5.44 Inch Diameter; 0.38 Inch Thickness; 4 Inch Trade Size; Used on Imc/Rigid Conduit; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Product Description: Appleton BL400A Aluminum Locknut
• UNSPSC: 31161716
• UPC 12 Digit: 781381704656
