Appleton d2p4a12

Overview

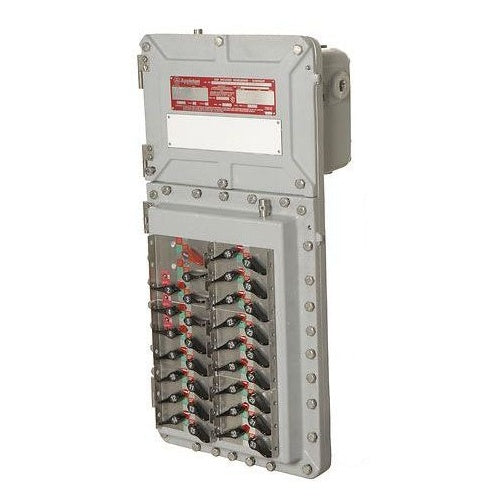

D2P4A12 D2P Explosionproof Factory Sealed Circuit Breaker Panelboard, 120/240 V AC, 250 A, 1 Pole, 10 kA Interrupt

Product Specifications

• Catalog Number: D2P4A12
• UPC / GTIN: 781381676298
• Manufacturer Brand: Appleton®
• UNSPSC: 39121103
• Features: Aluminum breaker actuators-spring loaded, corrosion resistant feature self locating design for actuating 1, 2, or 3 pole breakers in any sequence; Handles lock in either off or on position without interfering with tripping of breakers; Double door one for junction compartment and one for breaker compartment; Two O-ring gaskets on each breaker handle shaft to prevent entrance of water or corrosion; Hinges allow the doors to be lifted off; Breakers pre-wired to terminal block minimizes installation time; Insulated neutral lug provided as standard; Panelboards use standard Cutler-Hammer Quicklag® industrial circuit breakers; Provision for drains/breathers in both compartments; Factory sealed no external branch sealing fittings needed (except division 1 groups B and C )
• Amperage Rating: 250 A
• Breaker Type: QC/QPGF (GFI)/QPGFEP (EPD)/QC (HID)
• Color: Gray
• Country of Origin: United States of America | United States of America (the)
• Dimensions: 26 in H x 19.02 in W x 13.07 in D
• Enclosure Type: NEMA 3/3R/4/4X/5/7BCD/9EFG/12
• Housing Material: Copper Free Aluminum
• Interrupt Rating: 10 kA
• Mounting Type: Panel
• Number of Circuits: 12
• Number of Poles: 1
• Series: D2P
• Type: Explosionproof Factory Sealed
• Voltage Rating: 120/240 V AC | 120/240 VAC
• Wire Size: 6 AWG to 250 kcmil
