Appleton d2p4c24

Overview

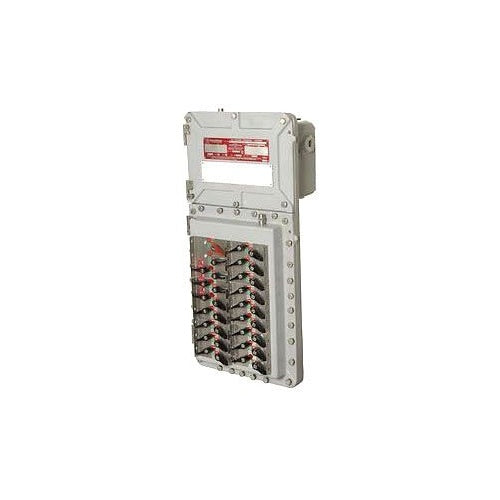

Appleton D2P4C24 Panelboard

Product Specifications

• Part Number: D2P4C24
• UPC / GTIN: 78138167647
• UPC: 78138167647
• Main Circuit Configuration: 3 WIRE
• Branch Circuit Configuration: 2 WIRE
• Cable Size: 6 AWG TO 250 MCM
• Enclosure Material: COPPER FREE ALUMINUM
• Enclosure Finish: GRAY EPOXY POWDER COATED
• Enclosure: CLASS I DIV 2 GROUP B C D, CLASS I ZONE 1 AEX DE IIB, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/4/4X/5/7B/7C/7D/9E/9F/9G/12
• Constructional Feature: CORROSION RESISTANT, DUST IGNITION PROOF, WATER TIGHT
• Mounting: BRACKET
• Size: 19.02 INCH W X 13.07 INCH D X 38 INCH H
• Brand Name: Appleton[R]
• Model: D2P
• Voltage Rating: 120/240 VAC
• Current Rating: 250 AMPERE
• Number of Circuits: 36
• Number of Breakers: 24
• Number of Breaker Poles: 1
• CATALOG DESCRIPTION: EXPLOSIONPROOF CIRCUIT BREAKER PANELBOARD, VOLTAGE RATING 120/240 VAC, CURRENT RATING 250 AMPERE, NUMBER OF CIRCUITS 36, NUMBER OF BREAKERS 24, NUMBER OF BREAKER POLES 1, MAIN CIRCUIT CONFIGURATION 3 WIRE, BRANCH CIRCUIT CONFIGURATION 2 WIRE, CABLE SIZE 6 AWG TO 250 MCM, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH GREY EPOXY POWDER COATED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/4/4X/5/7BCD/9EFG/12, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, CORROSION RESISTANT, SIZE 19.02 INCH W X 13.07 INCH D X 38 INCH H, APPROVAL UL 887/1203, APPLICABLE STANDARD NEC, INTERRUPTING CAPACITY 10000 AMPERE, INCLUDE (2) DOOR, (2) O-RING GASKET, STAINLESS STEEL BOLT
• Full Technical Description: 19.02 Inch Width X 13.07 Inch Depth X 38 Inch Height Size; Copper-Free Aluminum Enclosure Material; 6 AWG to 250 MCM Cable Size; UL 887/1203 Approval; 120/240 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/4/4X/5/7BCD/9EFG/12 Enclosure; 250 Amp Current Rating; Corrosion Resistance, Explosionproof, Dust Ignitionproof, Water Tight; 36 Circuit(S); Gray Epoxy Powder Coated Enclosure Finish; 1 Breaker Pole(S); 24 Breaker(S); 2-Wire Branch Circuit Configuratio; 3-Wire Main Circuit Configura
• Manufacturer: Appleton Electric
• Product Description: Appleton D2P4C24 Panelboard
• UNSPSC: 39121103
• UPC 12 Digit: 781381676472
