Appleton edsf24wq

Overview

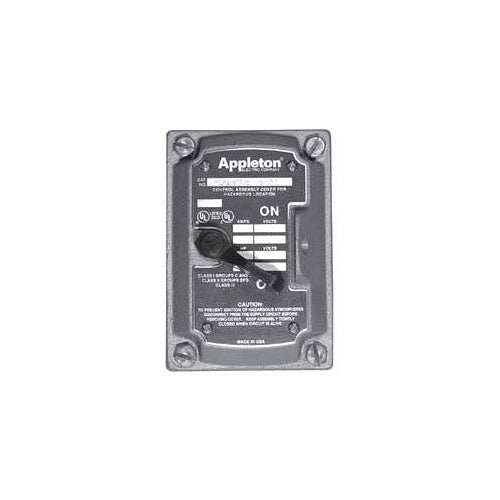

ContenderTM EDSF24WQ Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 3/7CD/9EFG NEMA Rating

Product Specifications

• Catalog Number: EDSF24WQ
• UPC / GTIN: 781381709590
• Manufacturer Brand: Appleton®
• UNSPSC: 39121565
• Features: Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Handle has close tolerance threaded stainless steel shaft to meet explosionproof requirements; Explosion proof dust-ignitionproof; Surface mount with 1/2 in dead-end hub, 1 HP at 120 VAC and 2 HP at 240 VAC
• Actuator: Front Operated Lever
• Amperage Rating: 20 A
• Connection Type: Thread
• Country of Origin: Mexico
• Finish: Triple Coated
• Material: Malleable Iron
• Mounting Type: Surface
• NEMA Rating: NEMA 3/7CD/9EFG
• Series: EDS
• Type: Sealed
• Voltage Rating: 120/277 V AC | 120/277 VAC
