Appleton efdb150u1

Overview

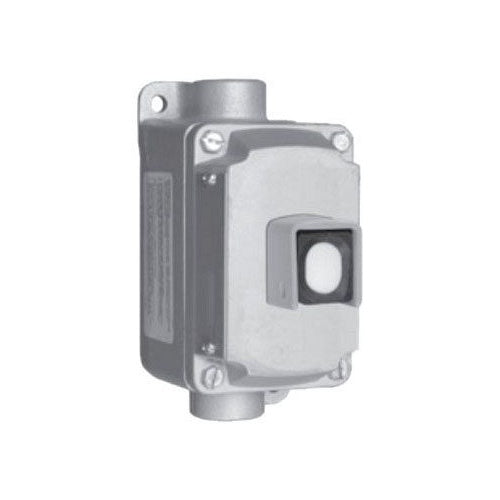

Appleton EFDB150U1 1-Gang 1-Pushbutton Unilet

Product Specifications

• Part Number: EFDB150U1
• UPC / GTIN: 78138170111
• UPC: 78138170111
• Number of Circuits: 1
• Contact Configuration: 1NO-1NC, UNIVERSAL
• Operator Type: FRONT OPERATED BUTTON
• Box Type: SINGLE GANG
• Hub Size: (1) 1/2 INCH
• Enclosure Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7C/7D/9E/9F/9G
• Brand Name: Appleton[R]
• Model: EFDB
• Type: DEAD END
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 10 AMPERE
• Number of Elements: 1
• CATALOG DESCRIPTION: EFDB SERIES 1-GANG 1 CIRCUIT PUSH BUTTON SWITCH, ACTION: MOMENTARY, CONTACT CONFIGURATION: 1 NO/1 NC, CONTACT RATING: 10 AMP AT 600 VAC, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 1/2 IN DEAD-END HUB, MATERIAL: MALLEABLE
• Full Technical Description: Dead End Type; Universal Contact Configuration; 1/2 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Copper-Free Aluminum (Cover) Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Start/Stop Legend; Explosionproof, Dust Ignitionproof; 1 Circuit(S); 1-Gang Box Type; Operation Type Momentary; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; EFDB Model
• Manufacturer: Appleton Electric
• Product Description: Appleton EFDB150U1 1-Gang 1-Pushbutton Unilet
• UNSPSC: 39121565
• UPC 12 Digit: 781381701112
