Appleton efdcb150um1

Overview

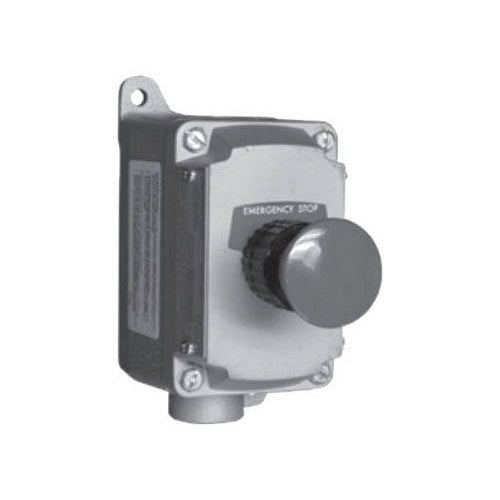

EFDCB150UM1 1-Gang 1-Circuit Feed-Through Pushbutton Switch Station, 600 V AC, 10 A, 1NO-1NC Contact, NEMA 3 NEMA Rating

Product Specifications

• Catalog Number: EFDCB150UM1
• UPC / GTIN: 781381701334
• Manufacturer Brand: Appleton®
• UNSPSC: 39121565
• Features: Malleable iron bodies, copperfree aluminum covers, copperfree aluminum and non-metallic components; Factory sealed, eliminating the need to add sealing fittings and compound at each conduit entrance; Stainless steel pushbutton shaft and bushings for long, maintece free operation; Heavy duty push buttons, 10 A, 600 VAC rated; Corrosion-resistant captive stainless steel hex head cap screws hold covers to body; All EFD/EFDB front operated push buttons are supplied standard with lockable guard to prevent unauthorized operation; Many models suitable for group B atmospheres
• Actuator: Mushroom Head
• Amperage Rating: 10 A
• Contact Configuration: 1NC-1NO | 1NO-1NC
• Contact Mode: Maintained
• Contact Rating: 10 A at 600 V AC | 10 A at 600 VAC
• Country of Origin: Mexico
• Dimensions: 4.63 in H x 6.19 in W x 4.69 in D
• Finish: Triple Coated
• Legend: EMERGENCY STOP
• Material: Malleable Iron
• Mounting Type: Surface
• NEMA Rating: NEMA 3
• Series: EFD
• Type: 1-Gang 1-Circuit Feed-Through
• Voltage Rating: 600 V AC | 600 VAC
