Appleton efdcb175j1u1

Overview

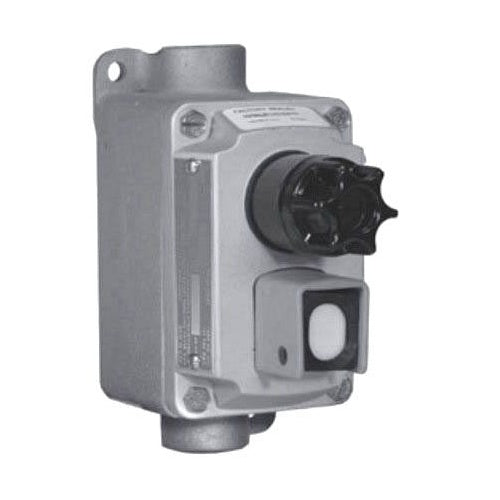

Appleton EFDCB175J1U1 1-Gang 1-Pushbutton & 1-Pilot Light Unilet

Product Specifications

• Part Number: EFDCB175J1U1
• UPC / GTIN: 78138170142
• UPC: 78138170142
• Number of Pushbuttons: 1
• Number of Pilot Lights: 1
• Operator Type: Front Operated Button
• Pilot Light Type: 120 VAC 6 W 6S6 Lamp
• Legend: Start-Stop
• Box Type: Single Gang
• Hub Size: (2) 3/4 Inch
• Enclosure Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Approval: UL 508/698/1203
• Additional Information: Pilot Light Includes Red Jewel
• Model: EFD
• Type: Feed Through
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere
• Number of Circuits: 1
• Contact Configuration: 1NO-1NC, Universal
• CATALOG DESCRIPTION: PUSHBUTTON AND PILOT LIGHT CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, NUMBER OF CIRCUITS 1, CONTACT CONFIGURATION 1NO-1NC, UNIVERSAL, NUMBER OF PUSHBUTTONS 1, NUMBER OF PILOT LIGHTS 1, OPERATOR TYPE FRONT OPERATED BUTTON, PILOT LIGHT TYPE 120 VAC 6 W 6S6 LAMP, LEGEND START/STOP, BOX TYPE SINGLE GANG, HUB SIZE 3/4 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 508/698/1203, OVERALL SIZE 3 INCH W X 5.75 INCH D X 6.13 INCH H, COVER MATERIAL ALUMINUM, INCLUDES INTERNAL GROUND SCREW, APPLICATION HAZARDOUS LOCATION
• Full Technical Description: Feed-Through Type; 1NO-1NC, Universal Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Start/Stop Legend; Explosionproof, Dust Ignitionproof; Button Operator Type; 1 Circuit(S)
• Manufacturer: Appleton Electric
• Product Description: Appleton EFDCB175J1U1 1-Gang 1-Pushbutton & 1-Pilot Light Unilet
• UNSPSC: 39121565
• UPC 12 Digit: 781381701426
