Appleton efsc1752023m

Overview

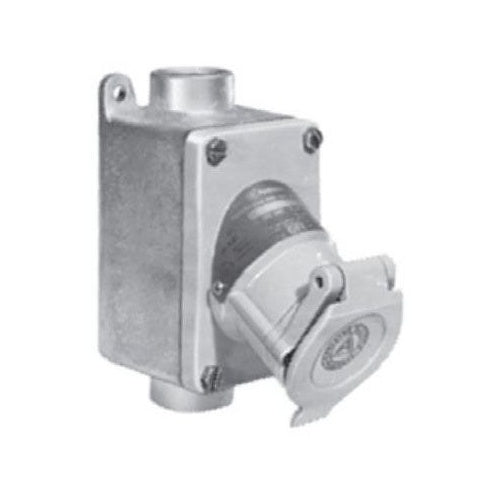

U-LineTM EFSC175-2023M 1-Gang Dust-Ignitionproof Feed Through Explosionproof Receptacle Assembly With Mounting Box, 125 V AC, 20 A, 3 Poles, 2 Wires

Product Specifications

• Catalog Number: EFSC1752023M
• UPC / GTIN: 781381397216
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; Glass filled reinforced polyester insulating blocks; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-LineTM explosionproof receptacles; Intermateable with competitor's plugs of like configurations
• Amperage Rating: 20 A
• Country of Origin: Mexico
• Dimensions: 6.5 in H x 2.75 in W x 5.64 in D
• Horsepower: 1 HP
• Material: Malleable Iron
• NEMA Rating: NEMA 3/3R
• Number of Poles: 3
• Number of Wires: 2
• Type: 1-Gang Dust-Ignitionproof Feed Through
• Voltage Rating: 125 V AC | 125 VAC
