Appleton stb9038sr

Overview

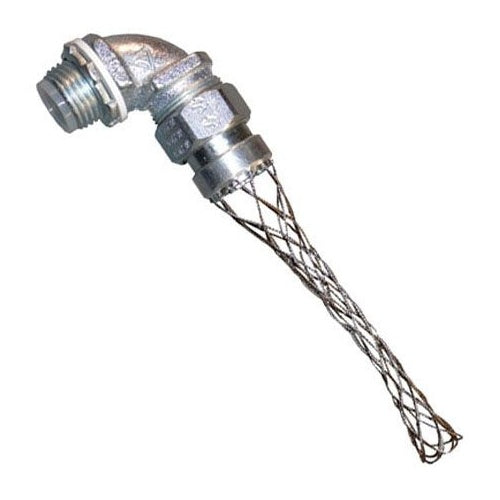

STB-9038SR Insulated Throat Oiltight Raintight Liquid Tight Conduit Connector With Stainless Steel Wire Mesh Strain Relief, 3/8 in Trade, 0.69 to 0.71 in Cable Openings, For Use With Liquid Tight Flexible Metallic Conduit

Product Specifications

• Catalog Number: STB9038SR
• UPC / GTIN: 781381513876
• Manufacturer Brand: Appleton®
• UNSPSC: 39121420
• Features: Unique long ferrule with more pronounced threads provides over four times UL pull out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground; Stainless steel wire mesh prevents pull out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection; Suitable for wet locations; Full, machined tapered threads (NPT); Chromate/epoxy powder coated/zinc electroplated finish
• Angle: 90 deg
• Cable Openings: 0.69 to 0.71 in
• Country of Origin: Mexico
• Dimensions: 1-1/2 in W
• Finish: Triple Coated
• Material: Malleable Iron
• Series: STB
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Trade Size: 3/8 in
• Type: Insulated Throat Oiltight Raintight
