Appleton t75a

Overview

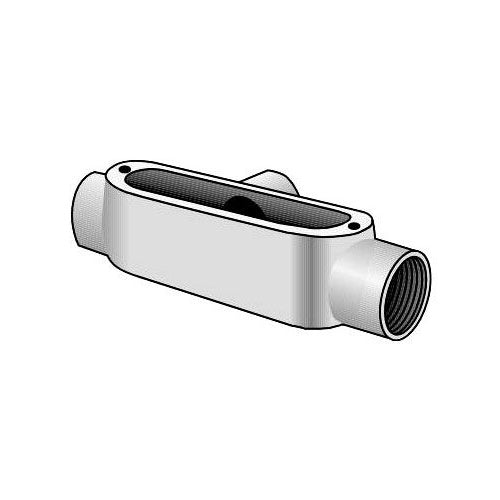

Appleton T75A 3/4" Aluminum T-Type Conduit Body

Product Specifications

• Part Number: T75A
• UPC / GTIN: 78138168705
• UPC: 78138168705
• Capacity: 7 Cubic Inch
• Enclosure: Class I Div 2
• Material: Copper-Free Aluminum
• Finish: Epoxy Powder Coated
• Size: 5.63 Inch Length x 1.56 Inch Width
• Approval: UL, CSA
• Additional Information: Type Form 85; Wire Size 6 AWG; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
• Brand Name: Form 85[TM]
• Constructional Feature: Explosionproof
• Configuration: T
• Hub Size: 3/4 Inch
• Number of Hubs: 3
• Hub Location: Tee
• Access Opening: Side
• CATALOG DESCRIPTION: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 85, LENGTH: 5.63 IN, HEIGHT: 1.63 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE N
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 5.63 Inch Length X 1.63 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 6 AWG; Capacity 7 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Product Description: Appleton T75A 3/4" Aluminum T-Type Conduit Body
• UNSPSC: 39131708
• UPC 12 Digit: 781381687058
