Appleton wsr10352

Overview

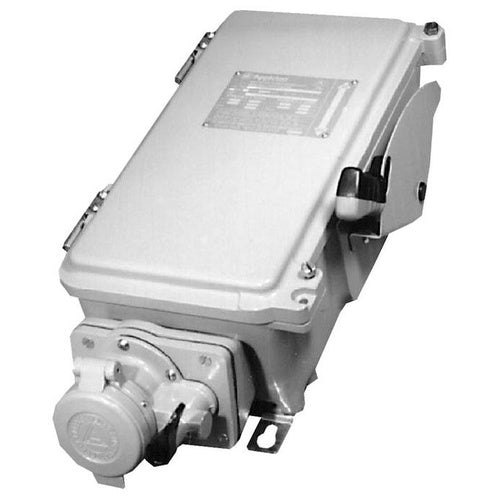

Appleton WSR10352 Wsr Receptacle w/High V Switch

Product Specifications

• Part Number: WSR10352
• UPC / GTIN: 78138171806
• UPC: 78138171806
• Number of Wires: 3
• Door Type: REMOVABLE HINGED, PADLOCKABLE COVER
• Fuse Provision: CLASS R, FUSIBLE
• Hub Type: 1-1/2 INCH
• Grounding Style: 2, SHELL, EXTRA POLE
• Material: EPOXY POWDER COATED (INSIDE, OUTSIDE) COPPER FREE ALUMINUM RECEPTACLE ASSEMBLY, EPOXY POWDER COATED (INSIDE, OUTSIDE) COPPER FREE CAST ALUMINUM ENCLOSURE
• Enclosure: NEMA 3/3R/4/4X/12
• Additional Information: APPLICATION AUTOMOTIVE AND STEEL PROCESSING PLANT, FABRICATION YARDS AND SHIPYARDS, MILK PROCESSING PLANT, PULP AND PAPER PROCESSING; APPROVAL UL 50, UL 98, UL 498, UL 1682, CSA
• Brand Name: Appleton[R]
• Model: WSR
• Type: INTERLOCKED
• Constructional Feature: CORROSION RESISTANT, RAIN TIGHT, WATER TIGHT
• Voltage Rating: 600 VAC 3 PHASE/250 VDC
• Current Rating: 100 AMPERE
• Number of Poles: 4
• CATALOG DESCRIPTION: INTERLOCKED RECEPTACLE AND DISCONNECT SWITCH, TYPE INTERLOCKED, CONSTRUCTIONAL FEATURE CORROSION RESISTANT, RAINTIGHT, WATERTIGHT, VOLTAGE RATING 600 VAC AT 50/60 HZ, 250 VDC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 4, NUMBER OF WIRES 3, DOOR TYPE SPRING DOOR, REMOVABLE HINGED, PADLOCKABLE COVER, FUSE PROVISION FUSIBLE, CLASS R, HUB TYPE 1-1/2 INCH, GROUNDING STYLE 2, SHELL, EXTRA POLE, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM (RECEPTACLE), CAST ALUMINUM (ENCLOSURE), ENCLOSURE NEMA 3/3R/4/4X/12, WIRE SIZE 14 TO 1/0 AWG, POWER RATING 30 HP AT 600 VAC (STANDARD), 75 HP AT 600 VAC (MAXIMUM), EXCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT, EXCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum (Enclosure), Insulated Dual Core Polymer (Operating Handle), Stainless Steel (Hardware) Material; 3 Wire(S); 600 Volt AC 50/60 Hertz 3-Phase, 250 Volt DC Voltage Rating; NEMA 3/3R/4/4X/12 Enclosure; 100 Amp Current Rating; 4 Pole(S); Rain
• Manufacturer: Appleton Electric
• Product Description: Appleton WSR10352 Wsr Receptacle w/High V Switch
• UNSPSC: 39121406
• UPC 12 Digit: 781381718066
