Appleton wsr3352

Overview

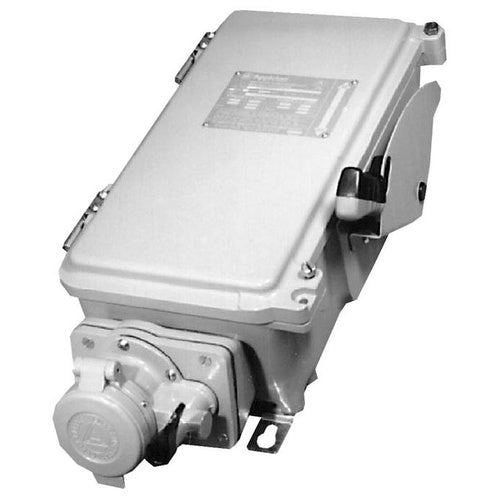

WSR3352 Fused Grounding Style 2 Interlocked Receptacle With Enclosed Disconnect Switch, 600 V AC/250 V DC, 30 A, 4 Poles, 3 Wires

Product Specifications

• Catalog Number: WSR3352
• UPC / GTIN: 781381718028
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell and extra pole grounding style 2; Without viewing window; WSR models provide a triple coated, copper-free cast aluminum enclosure that is ideal for outdoor and rugged use; Dead front design ensures that receptacle is not energized until the plug is fully inserted and the switch is engaged, locking the plug in place; Uses standard Powertite plugs; Square D* F series disconnect switches are standard on most models (some WSR models use Cutler Hammer); Corrosion resistant, raintight, watertight; Type spring door, removable hinged, padlockable cover
• Amperage Rating: 30 A
• Country of Origin: United States of America | United States of America (the)
• Dimensions: 19.25 in L x 11.56 in W
• Frequency Rating: 50/60 Hz
• Horsepower: 7.5/20 hp
• Material: Aluminum
• NEMA Rating: NEMA 3/3R/4/4X/12
• Number of Poles: 4
• Number of Wires: 3
• Series: WSR
• Type: Fused Grounding Style 2
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
• Wire Size: 14 to 2 AWG
