Overview

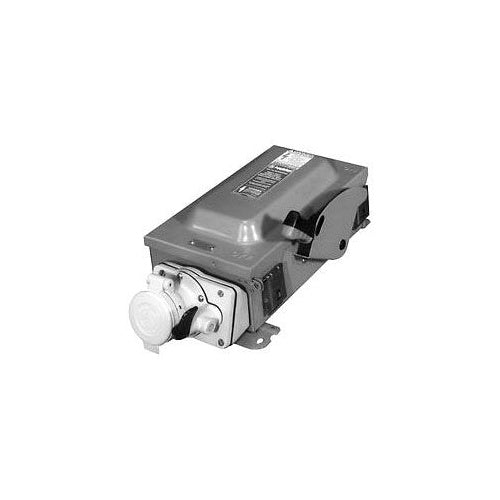

Appleton WSRD10352WSQ Nema12 100A Receptacle

Product Specifications

• Catalog Number: WSRD10352WSQ
• UPC / GTIN: 78138175701
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Enamel Coated Sheet Metal (Enclosure) Material; 3 Wire(S); 600 Volt AC 50/60 Hertz 3-Phase, 250 Volt DC Voltage Rating; NEMA 3/12 Enclosure; 100 Amp Current Rating; 4 Pole(S)
• CATALOG DESCRIPTION: INTERLOCKED RECEPTACLE AND DISCONNECT SWITCH, TYPE INTERLOCKED, CONSTRUCTIONAL FEATURE CORROSION RESISTANT, RAINTIGHT, WATERTIGHT, VOLTAGE RATING 600 VAC AT 50/60 HZ, 250 VDC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 4, NUMBER OF WIRES 3, DOOR TYPE SPRING DOOR, REMOVABLE HINGED, PADLOCKABLE COVER, FUSE PROVISION FUSIBLE, CLASS J, HUB TYPE 1-1/2 INCH, GROUNDING STYLE 2, SHELL, EXTRA POLE, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM (RECEPTACLE), ENAMEL COATED SHEET METAL (ENCLOSURE), ENCLOSURE NEMA 3/3R/4/4X/12, WIRE SIZE 14 TO 1/0 AWG, POWER RATING 30 HP AT 600 VAC, INCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT (STANDARD), 75 HP AT 600 VAC, INCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT (MAXIMUM), INCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT
• Manufacturer: Appleton Electric
• Product Description: Appleton WSRD10352WSQ Nema12 100A Receptacle
• UNSPSC: 39121406
• UPC 12 Digit: 781381757010
