Appleton wsrd6352

Overview

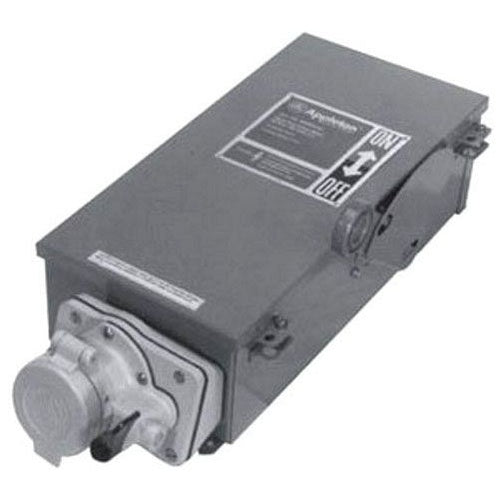

WSRD6352 3-Phase Fused Grounding Style 2 Interlocked Receptacle With Enclosed Disconnect Switch, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires

Product Specifications

• Catalog Number: WSRD6352
• UPC / GTIN: 781381697521
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Shell and extra pole grounding style 2; For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug; Short circuit withstand rated to 200000 RMS symmetrical amps; Unit is equipped with defeatable door interlock which allows emergency access when switch is energized; Cover can be padlocked closed; Dead front design receptacle is not energized until plug is fully inserted and switch is engaged; Without viewing window
• Amperage Rating: 60 A
• Country of Origin: United States of America | United States of America (the)
• Dimensions: 23 in H x 10.81 in W x 10 in D
• Frequency Rating: 50/60 Hz
• Horsepower: 15 /50 hp
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3R/12
• Number of Poles: 4
• Number of Wires: 3
• Series: WSRD
• Type: 3-Phase Fused Grounding Style 2
• Voltage Rating: 600 V AC/250 V DC | 600/250 VAC/VDC
• Wire Size: 6 to 2 AWG
