Appleton wsrd63542

Overview

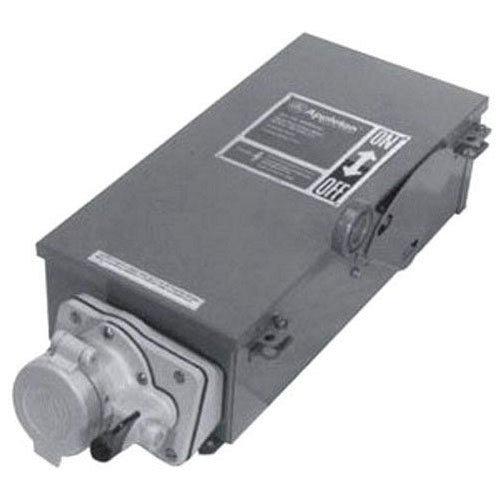

WSRD63542 Non-Fused Interlocked Receptacle, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires

Product Specifications

• Catalog Number: WSRD63542
• UPC / GTIN: 781381697538
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: Where an interlocked disconnect switch is desired to control a PowertiteTM receptacle and insertion or removal of plug; Interlock prohibits plug insertion or removal under load; Plug is secured in place by interlock and cannot be withdrawn unless interlock release lever is actuated; Spring door standard and screw cap provided at no additional cost to meet NEMA 3/3R/4/4X applications; Insulated, dual-color polymer operating handle clearly indicates the switch being energized; Ergonomically designed handle is made of high-impact polymer material for exceptional ruggedness, durability and corrosion resistance; Utilizes Style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring; Class R fusing standard on WSRD units; Product can be retrofitted with class J, K or S fusing; Short circuit withstand rated to 200,000 RMS symmetrical amperes (class R and J fusing)
• Amperage Rating: 60 A
• Country of Origin: United States of America (the)
• Frequency Rating: 50/60 Hz
• Horsepower: 60 HP
• Material: Sheet Metal
• NEMA Rating: NEMA 3R/12
• Number of Poles: 4
• Number of Wires: 3
• Series: WSRD
• Type: Non-Fused
• Voltage Rating: 600 V AC/250 V DC | 600 VAC/250 VDC VAC/VDC
