Appleton wst10354

Overview

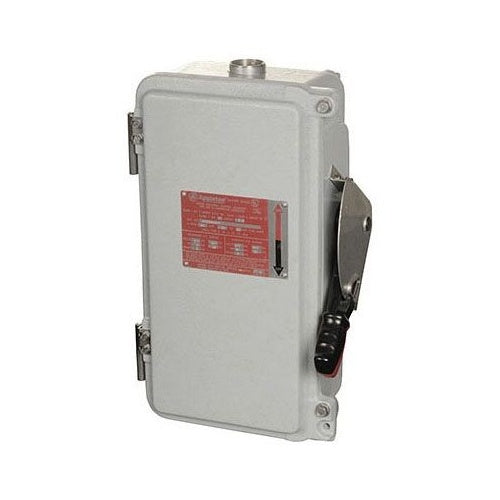

WST10354 Enclosed Heavy Duty Non-Fused Disconnect Switch, 600 V AC/DC, 100 A, 75 hp, 50 hp

Product Specifications

• Catalog Number: WST10354
• UPC / GTIN: 781381718134
• Manufacturer Brand: Appleton®
• UNSPSC: 39121406
• Features: The WDS version available with optional window and LED indicator light; Gasketed design allows use in raintight or watertight non hazardous applications; Ergonomically designed handle is made of high impact polymer or cast aluminum material for exceptional ruggedness, durability and corrosion resistance; Class R fusing standard on fusible units, product can be retrofitted with Class J, K, or S fusing; Stainless steel captive cover bolts for easy access and corrosion resistance; Unit is equipped with defeatable door interlock which allows emergency access when switch is energized; Cover can be padlocked closed; WST has an insulated, dual-color polymer operating handle clearly indicates the switch being energized; Stainless steel key hole mounting feet for easy installation; Removable hinged cover for ease of installation and maintece
• Actuator Type: Handle
• Amperage Rating: 100 A
• Color: Gray
• Country of Origin: United States of America | United States of America (the)
• Dimensions: 22.88 in H x 11.56 in W x 11 in D
• Enclosure Type: NEMA 3/3R/4/4X/12
• Finish: Epoxy Powder Coated
• Horsepower: 75 hp, 50 hp
• Material: Copper Free Aluminum
• Mounting Type: Keyhole
• Phase: 3
• Series: WST
• Type: Enclosed Heavy Duty Non-Fused
• Voltage Rating: 600 V AC/DC | 600 VAC/VDC
