Appleton wst3035

Overview

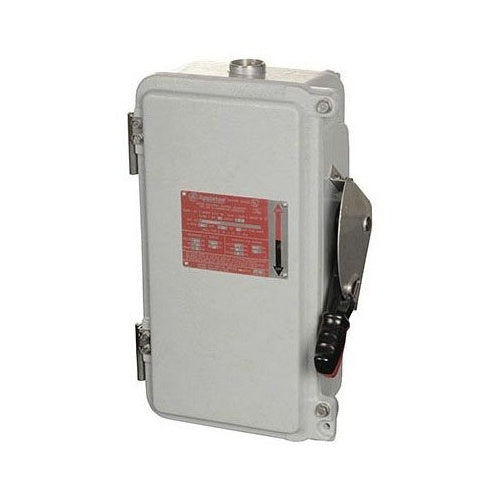

Appleton WST3035 30A Fuse Enclosure Switch Assembly

Product Specifications

• Part Number: WST3035
• UPC / GTIN: 78138171808
• UPC: 78138171808
• Fuse Type: Class J/K/R/S
• Neutral Type: No
• Enclosure: NEMA 3/3R/4/4X/12
• Size: 11.56 Inch W x 11 Inch D
• Enclosure Material: Copper Free Aluminum
• Finish: Epoxy Powder Coated
• Approval: UL 98
• Model: WST
• Type: Heavy Duty Safety
• AC Voltage Rating: 600 VAC
• DC Voltage Rating: 600 VDC
• Current Rating: 30 Ampere
• Power Rating: 7.5 HP at 600 VAC 3-Phase, 10 HP at 600 VDC (Standard), 20 HP at 600 VAC 3-Phase, 15 HP at 600 VDC (Maximum)
• Fuse Provision: Fusible
• CATALOG DESCRIPTION: DISCONNECT SWITCH TYPE HEAVY DUTY SAFETY AC VOLTAGE RATING 600 V DC VOLTAGE RATING 600 V CURRENT RATING 30 AMPERE POWER RATING 7.5 HP AT 600 VAC 3 PHASE, 10 HP AT 600 VDC (STANDARD) 20 HP AT 600 VAC 3 PHASE, 15 HP AT 600 VDC (MAXIMUM) FUSE PROVISION FUSIBLE NEUTRAL TYPE NO ENCLOSURE NEMA 3/3R/4/4X/12 SIZE 11.56 INCH W X 11 INCH D ENCLOSURE MATERIAL COPPER FREE ALUMINUM FINISH EPOXY POWDER COATED APPROVAL UL APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCKS
• Full Technical Description: Heavy Duty Type; 11.56 Inch Width X 11 Inch Depth X 19.25 Inch Height Size; Epoxy Powder Coated Finish; Copper-Free Cast Aluminum Enclosure Material; UL 98 Approval; NEMA 3/3R/4/4X/12 Enclosure; 30 Amp Current Rating; 7.5/20 HP at 600 Volt AC, 10/15 HP at 600 Volt DC Power Rating; Class J/K/R/S Fuse Type; 600 Volt AC Voltage Rating; 600 Volt DC Voltage Rating; Fusible Fuse Provision; Material Dual Color High Impact Polymer (Operating Handle), Stainless Steel (Cover Bolt/Hardware); Application Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock; WST Model
• Manufacturer: Appleton Electric
• Product Description: Appleton WST3035 30A Fuse Enclosure Switch Assembly
• UNSPSC: 39121406
• UPC 12 Digit: 781381718080
