Appleton wst60354

Overview

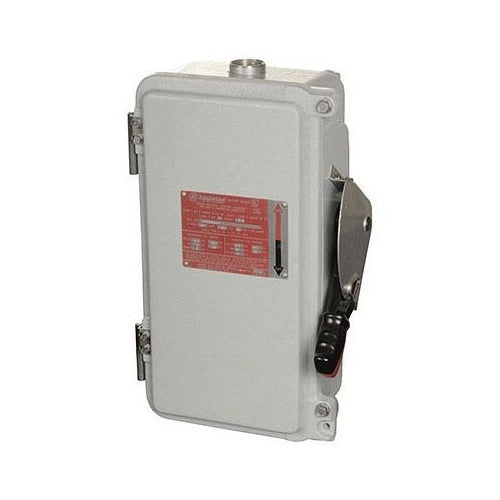

Appleton WST60354 60A Nf Enclosure Switch Assembly

Product Specifications

• Part Number: WST60354
• UPC / GTIN: 78138171811
• UPC: 78138171811
• Fuse Provision: NON FUSIBLE
• Neutral Type: NO
• Size: 11.56 INCH W X 11 INCH D
• Enclosure Material: CAST COPPER FREE ALUMINUM
• Finish: EPOXY POWDER COATED
• Approval: UL 98
• Additional Information: APPLICABLE STANDARD NEMA
• Brand Name: Appleton[R]
• Model: WST
• Type: HEAVY DUTY SAFETY
• AC Voltage Rating: 600 V
• DC Voltage Rating: 600 V
• Current Rating: 60 AMPERE
• Power Rating: 60 HP AT 600 VAC 3 PHASE, 30 HP AT 600 VDC (MAXIMUM)
• CATALOG DESCRIPTION: DISCONNECT SWITCH TYPE HEAVY DUTY SAFETY AC VOLTAGE RATING 600 V DC VOLTAGE RATING 600 V CURRENT RATING 60 AMPERE POWER RATING 60 HP AT 600 VAC 3 PHASE, 30 HP AT 600 VDC (MAXIMUM) FUSE PROVISION NON-FUSIBLE NEUTRAL TYPE NO ENCLOSURE NEMA 3/3R/4/4X/12 SIZE 11.56 INCH W X 11 INCH D ENCLOSURE MATERIAL COPPER FREE ALUMINUM FINISH EPOXY POWDER COATED APPROVAL UL APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCKS
• Full Technical Description: Heavy Duty Type; 11.56 Inch Width X 11 Inch Depth X 19.25 Inch Height Size; Epoxy Powder Coated Finish; Copper-Free Cast Aluminum Enclosure Material; UL 98 Approval; NEMA 3/3R/4/4X/12 Enclosure; 60 Amp Current Rating; 60 HP at 600 Volt AC, 30 HP at 600 Volt DC Power Rating; 600 Volt AC Voltage Rating; 600 Volt DC Voltage Rating; Non-Fusible Fuse Provision; Material Dual Color High Impact Polymer (Operating Handle), Stainless Steel (Cover Bolt/Hardware); Application Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock; WST Model
• Made in USA: Yes
• Manufacturer: Appleton Electric
• Product Description: Appleton WST60354 60A Nf Enclosure Switch Assembly
• UNSPSC: 39121406
• UPC 12 Digit: 781381718110
