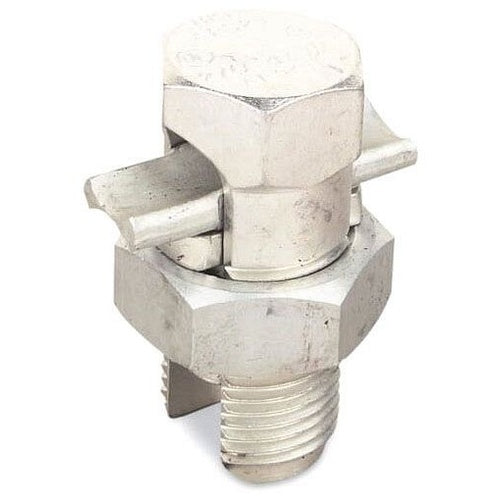

Blackburn APS41 Aluminum Test Point Dual Splitbolt Connector 4/0-2Str

Overview

Blackburn APS41 Aluminum Test Point Dual Splitbolt Connector 4/0-2Str

Product Specifications

• UPC: 78378620145
• Minimum Tap Conductor Size: 2 AWG Stranded
• Maximum Tap Conductor Size: 4/0 AWG Stranded
• Material: Tin Plated Corrosion Resistant Aluminum
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-23/32 Inch Length x 1-1/4 Inch Width x 2.47 Inch Height
• Catalog Number: APS41
• Brand Name: Blackburn
• Model: APS
• Type: Split Bolt
• Installation: Hex Head Split Bolt with Wrench
• Conductor Material: Copper/Aluminum
• Minimum Run Conductor Size: 2 AWG Stranded
• Maximum Run Conductor Size: 4/0 AWG Stranded
• Catalog Description: TYPE APS TIN-PLATED ALUMINUM DUAL-RATED SPLIT-BOLT CONNECTOR FOR USE ON COPPER, ALUMINUM CONDUCTORS. CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 4/0-2 STR.
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Tin Plated Corrosion Resistant Aluminum Material; 2 AWG Stranded min. Run Conductor Size; 4/0 AWG Stranded Max. Run Conductor Size; 2 AWG Stranded min. Tap Conductor Size; 4/0 AWG Stranded Max. Tap Conductor Size; Hex Head Split Bolt With Wrench Installation; Copper/Aluminum Conductor Material; UL, CSA Approval; Overall Dimension 1-23/32 Inch Length X 1-1/4 Inch Width X 2.47 Inch Height; APS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786201457
• SKU Name: aps41 blackburn
