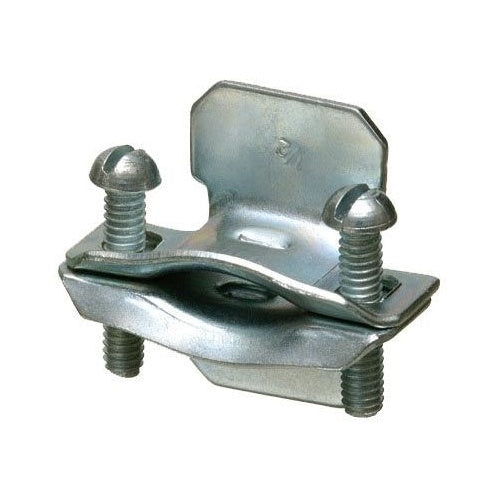

Arlington BT75 3/4" & 1" 2-Pc Connector

Overview

Arlington BT75 3/4" & 1" 2-Pc Connector

Product Specifications

• UPC: 01899724075
• Catalog Number: BT75
• Installation: (2) Screw
• Cable Type: Non-Metallic Cable
• Cable Size: (1) 8/2 to (1) 6/2 AWG, (1) 12/3 AWG and (1) 10/3 AWG
• Material: Plated Steel
• Standard Package: 500
• Approval: UL
• Catalog Description: NON-METALIC 2 SCREW 3/4 AND 1 INCH PLATED STEEL CLAMP CABLE CONNECTOR ACCEPTS 8/2 TO 6/2 WIRE SIZE.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Plated Steel Material; (2) Screw Installation; Non-Metallic Cable Cable Type; (1) 8/2 to (1) 6/2 AWG, (1) 12/3 AWG and (1) 10/3 AWG Cable Size; UL Approval; 500 Standard Package
• Manufacturer: Arlington Industries, Inc.
• Manufacturer Brand: Arlington Industries, Inc.
• Proposition 65 Warning (Ca): No
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121409
• UPC 12 Digit: 018997240750
• SKU Name: arl bt75

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
