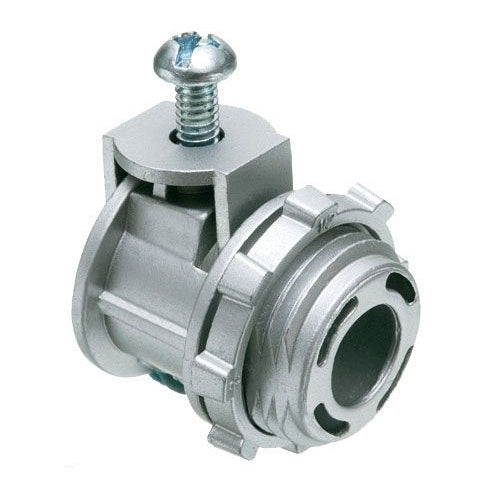

Arlington SG50 1/2" Saddle Grip Connector

Overview

Arlington SG50 1/2" Saddle Grip Connector

Product Specifications

• UPC: 01899707500
• Length: 1.48 Inch
• Installation: (1) Screw, Saddle
• Throat Type: Non-Insulated
• Material: Die Cast Zinc
• Standard Package: 500
• Approval: UL (Canada and US), CSA
• Catalog Number: SG50
• Brand Name: SADDLEGRIP[R]
• Type: Straight
• Trade Size: 1/2 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit/Metal Clad Cable
• Cord Size: 0.71 to 0.91 Inch
• Catalog Description: ZINC DIE-CAST, 1/2" KNOCKOUT SADDLE-TYPE CONNECTOR WITH SPRING SET SCREW FOR SECURING ALUMINUM AND STEEL CABLE. SECURES INTO KNOCKOUT WITH A ZINC DIE-CAST. CONCRETE TIGHT WHEN TAPED. SUPPORTS .630 TO .900 CABLE RANGE WITH A .620 END STOP DIAMETER.
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Die Cast Zinc Material; 1.48 Inch; (1) Screw, Saddle Installation; UL (Canada and Us), CSA Approval; 500 Standard Package; 1/2 Inch Trade Size; 1/2 Inch Knockout Size; 0.71 to 0.91 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit/Metal Clad Cable; Single Cable Opening; SADDLEGRIP[R] Brand
• Made In Usa: Yes
• Manufacturer: ARLINGTON
• Manufacturer Brand: Arlington Industries, Inc.
• Proposition 65 Warning (Ca): No
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 018997075000
• SKU Name: arl sg50
