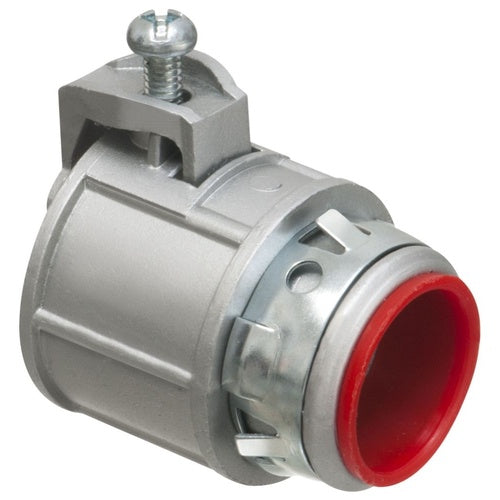

Arlington SG75AST 3/4" Insulated Saddle Grip St

Overview

Arlington SG75AST 3/4" Insulated Saddle Grip St

Product Specifications

• UPC: 01899717755
• Length: 1.54 Inch
• Installation: (1) Screw
• Throat Type: Insulated
• Material: Die Cast Zinc
• Standard Package: 200
• Approval: UL (Canada and US), CSA
• Additional Information: APPLICABLE STANDARD NEC 1999 250-97
• Catalog Number: SG75AST
• Brand Name: SADDLEGRIP[R], SNAP-TITE[R]
• Type: Straight
• Trade Size: 3/4 Inch
• Knockout Size: 3/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit/Metal Clad Cable
• Cord Size: 0.84 to 1.11 Inch
• Catalog Description: ZINC DIE-CAST, 3/4" KNOCKOUT SADDLE-TYPE CONNECTOR WITH SPRING SET SCREW FOR SECURING ALUMINUM AND STEEL CABLE. SNAPS INTO KNOCKOUT WITH EXTERNAL SPRING STEEL CLIP. PROVIDED WITH INSULATED THROAT. CONCRETE TIGHT WHEN TAPED. SUPPORTS .840 TO 1.110 CABLE RANGE WITH A .820 END STOP DIAMETER.
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Die Cast Zinc Material; 1.54 Inch; (1) Screw Installation; UL (Canada and Us), CSA Approval; 200 Standard Package; 3/4 Inch Trade Size; 3/4 Inch Knockout Size; 0.84 to 1.11 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Metal Conduit/Metal Clad Cable; Single Cable Opening; SADDLEGRIP[R], SNAP-TITE[R] Brand; Applicable Standard NEC 1999 250-97
• Made In Usa: Yes
• Manufacturer: ARLINGTON
• Manufacturer Brand: Arlington Industries, Inc.
• Proposition 65 Warning (Ca): No
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 018997177551
• SKU Name: arl sg75ast
