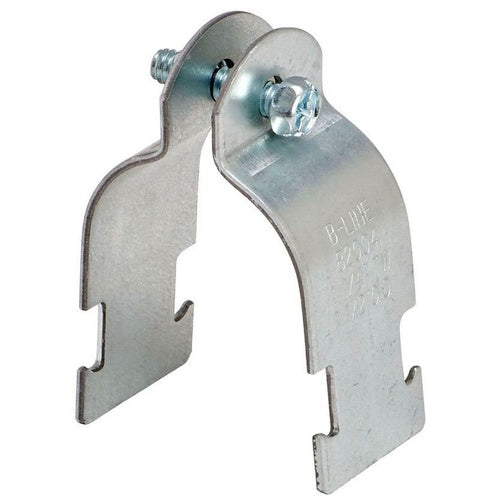

B-Line B2010PAAL 1" Pipe/Conduit ClAMP, Rigid, 1", Pre-Assembled, Alum

Overview

B-Line B2010PAAL 1" Pipe/Conduit Clamp, Rigid, 1", Pre-Assembled, Alum

Product Specifications

• UPC: 78101161038
• Catalog Number: B2010PAAL
• Model: B2000
• Type: Pipe/Rigid Conduit to Strut, Pre-Assembled
• Material: ASTM B209/5052-H32 14 Gauge Aluminum Alloy
• Trade Size: 1 Inch
• Load Rating: 270 Lb
• Additional Information: Includes Combination Recess Hex Head Machine Screw and Square Nut; Safety Factor 5
• Catalog Description: EATON B-LINE SERIES PRE-ASSEMBLED O.D. PIPE AND CONDUIT CLAMP, 0.0810" H X 2.9510" L X 1.25" W, ALUMINUM
• Category: Channel & Strut Fittings
• Full Technical Description: Pipe/Rigid Conduit to Strut, Pre-Assembled Type; ASTM B209/5052-H32 14 Gauge Aluminum Alloy Material; 270 lb Load Rating; 1 Inch Trade Size; Includes Combination Recess Hex Head Machine Screw and Square Nut; Safety Factor 5; B2000 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel Conduit/Cable Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011610388
• SKU Name: bline b2010paal
