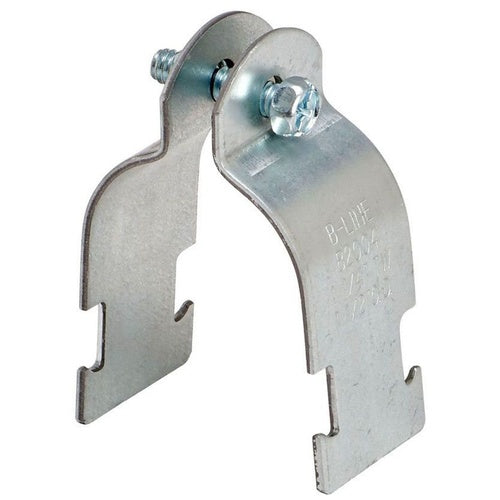

B-Line B2011AL 1-1/4"-Rigid Conduit ClAMP, 1-1/4", Alum

Overview

B-Line B2011AL 1-1/4"-Rigid Conduit Clamp, 1-1/4", Alum

Product Specifications

• UPC: 78101160124
• Catalog Number: B2011AL
• Model: B2000
• Type: Rigid Conduit to Strut
• Material: ASTM B209/5052-H32 14 Gauge Aluminum Alloy
• Trade Size: 1-1/4 Inch
• Load Rating: 270 Lb
• Additional Information: Includes Combination Recess Hex Head Machine Screw and Square Nut; Safety Factor 5
• Catalog Description: EATON B-LINE SERIES O.D. PIPE AND CONDUIT CLAMP, 0.0810" H X 3.3510" L X 1.25" W, ALUMINUM, 600 LBS LOAD CAP
• Category: Channel & Strut Fittings
• Full Technical Description: Rigid Conduit to Strut Type; ASTM B209/5052-H32 14 Gauge Aluminum Alloy Material; 270 lb Load Rating; 1-1/4 Inch Trade Size; Includes Combination Recess Hex Head Machine Screw and Square Nut; Safety Factor 5; B2000 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel Conduit/Cable Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011601249
• SKU Name: bline b2011al
