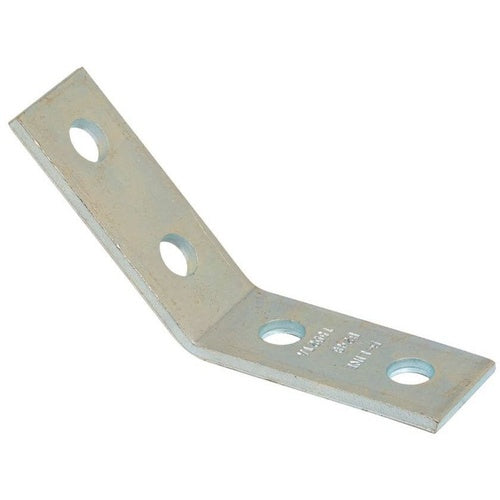

B-Line B248ZN 4-Hole Open Angle, 45 Deg, Zinc Plated

Overview

B-Line B248ZN 4-Hole Open Angle, 45 Deg, Zinc Plated

Product Specifications

• UPC: 78101152463
• Hole Size: 9/16 Inch Diameter
• Size: 3-1/2 Inch Length x 3-11/16 Inch Width
• Material: ASTM B633/ASTM A653 Steel
• Process: Hot Rolled, Pickled and Oiled
• Finish: Zinc Electroplated
• Thickness: 7/32 Inch
• Weight: 77 Pound per Carton
• Used On: Channel/Strut
• Additional Information: Edge to Hole Center Size 13/16 Inch
• Catalog Number: B248ZN
• Brand Name: Cooper B-Line
• Model: B248
• Type: Brackets
• Channel Width: 1-5/8 Inch
• Channel Depth: 1-5/8 Inch
• Bend Angle: 45 Degree
• Number Of Holes: 4
• Catalog Description: EATON B-LINE SERIES OPEN ANGLE, 2.7" H X 6.03" L X 1.62" W, STEEL, ELECTRO-PLATED, 1/4" GAUGE
• Category: Channel & Strut Fittings
• Full Technical Description: Open Angle Type; ASTM A653/B633 SC3 Type III Carbon Steel Material; 3-1/2 Inch X 3-11/16 Inch Size; Zinc Electroplated Finish; Channel/Strut System Used on; 1-5/8 Inch Channel Width; 7/32 Inch Thickness; Hot Rolled Pickled and Oiled Process; 0.736 Pound Weight; 4 Hole(S); 9/16 Inch Diameter Hole Size; 45 Degree Bend Angle; Hole Spacing Size (From End) 13/16 Inch, 1-7/8 Inch (Center); B248 Model
• Made In Usa: Yes
• Manufacturer: EATON B-LINE SYSTEMS INC
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut Angular Fitting
• Unspsc: 39121311
• UPC 12 Digit: 781011524630
• SKU Name: bline b248pltd
