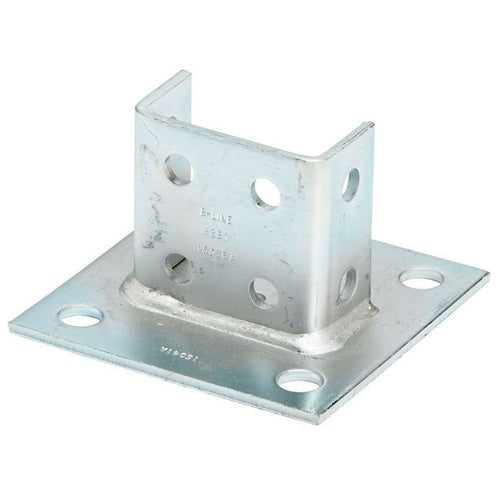

B-Line B281SQSS4 Post Base 1-5/8" X 1-5/8" Side By Side Channel,6" X 6" X 1-5/8"

Overview

B-Line B281SQSS4 Post Base 1-5/8" X 1-5/8" Side By Side Channel,6" X 6" X 1-5/8"

Product Specifications

• UPC: 78101157174
• Pad Size: 6 Inch L x 6 Inch W
• Number Of Pad Mounting Holes: 4
• Pad Mounting Hole Size: 3/4 Inch Dia
• Thickness: 7/32 Inch
• Material: ASTM A1018 Steel
• Process: Hot Rolled Pickled Oiled
• Additional Information: Used On B22A, B, C, Etc Channel; Excludes Nut and Bolt
• Catalog Number: B281SQSS4
• Model: B281SQ
• Type: U Post, Square Base
• Number Of Channels: 2
• Channel Position: Centered
• Post Height: 3-1/2 Inch
• Number Of Channel Mounting Holes: 8
• Channel Mounting Hole Size: 9/16 Inch Dia
• Catalog Description: EATON B-LINE SERIES POST BASE, 3.5" H X 6" L X 6" W, STEEL, STAINLESS STEEL TYPE 304, POST BASE FOR B22A, B, C, SQUARE POST BASE, CENTERED
• Category: Channel & Strut Fittings
• Full Technical Description: U Post, Square Base Type; ASTM A1018 Steel Material; 3-1/2 Inch Post Height; 7/32 Inch Thickness; Hot Rolled Pickled Oiled Process; 6 Inch L X 6 Inch W Pad Size; 2 Channel(S); 9/16 Inch Dia Channel Mounting Hole Size; Centered Channel Position; 4 Pad Mounting Hole(S); 3/4 Inch Dia Pad Mounting Hole Size; 8 Channel Mounting Hole(S); Used on B22A, B, C, Etc Channel; Excludes Nut and Bolt; B281SQ Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut Post Base
• Unspsc: 39121311
• UPC 12 Digit: 781011571740
• SKU Name: bline b281sqss4
