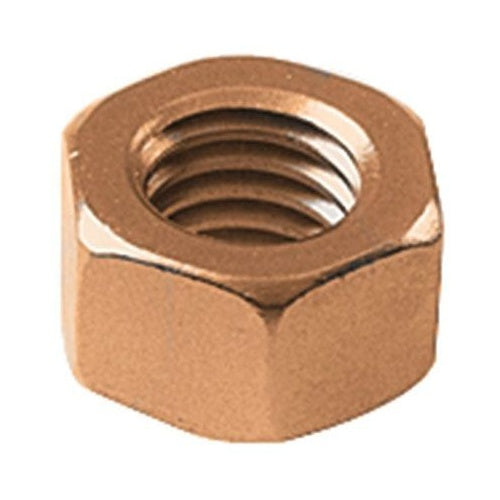

Burndy 38CHENBOX 3/8" Hex Nut

Overview

Burndy 38CHENBOX 3/8" Hex Nut

Product Specifications

• UPC: 78181001238
• Material: Silicon Bronze
• Additional Information: RoHS Compatible
• Catalog Number: 38CHENBOX
• Brand Name: DURIUM[TM]
• Type: Jam
• Nominal Diameter: 3/8 Inch
• Tpi: 16
• Thread Series: UNC-2B
• Thickness: 0.337 Inch
• Width Across Flat: 0.562 Inch
• Catalog Description: SILICON BRONZE NUT ,3/8 STUD ,THREAD SERIES-CLASS 28.
• Category: Screws,Nuts,Bolts,Washers
• Full Technical Description: Jam Type; Silicon Bronze Material; 0.562 Inch Width Across Flat; 3/8 Inch Nominal Diameter; Unc-2B Thread Series; 16 TPI; 0.337 Inch Thickness; DURIUM[TM] Brand; RoHS Compatible
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Hex Nut - Non Metric
• Unspsc: 31161727
• UPC 12 Digit: 781810012383
• SKU Name: bur 38chenbox

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
