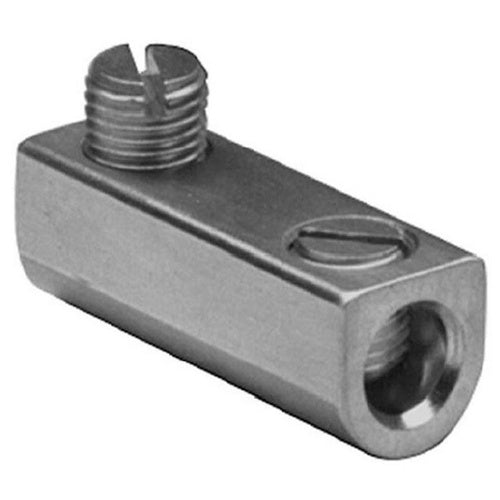

Burndy AMS-0 1/0-14 Dual Rated Splice

Overview

Burndy AMS-0 1/0-14 Dual Rated Splice

Product Specifications

• UPC: 78181024101
• Screw Size: 7/16 Inch Diameter
• Size: 1.91 Inch Length x 0.75 Inch Width x 0.75 Inch Height
• Body Material: Tin Plated Aluminum
• Insulation Type: Non-Insulated
• Approval: UL467, CSA
• Additional Information: Installation Torque 50 Pound-Inch; Temperature Rating 194 Deg F
• Catalog Number: AMS0
• Brand Name: Burndy
• Model: AMS
• Voltage Rating: 600 Volt
• Minimum Conductor Size: 14 AWG (Copper/Aluminum)
• Maximum Conductor Size: 1/0 AWG (Copper/Aluminum)
• Conductor Material: Copper/Aluminum
• Number Of Screws: 2
• Catalog Description: MECHANICAL SPLICE FOR #14-1/0 AWG, DUAL RATED, 2-SCREWS. SOLID CENTER BARRIER PREVENTS CONTACT OF DISSIMILAR METALS.
• Category: Large Terminals & Connectors
• Full Technical Description: 1.91 Inch Length X 0.75 Inch Width X 0.75 Inch Height Size; 14 AWG (Copper/Aluminum) min. Conductor Size; 1/0 AWG (Copper/Aluminum) Max. Conductor Size; Copper/Aluminum Conductor Material; UL467, CSA Approval; 600 Volt Voltage Rating; Tin Plated Aluminum Body Material; Non-Insulated Insulation Type; 7/16 Inch Diameter Screw Size; 2 Screw(S); Installation Torque 50 Pound-Inch; Temperature Rating 194 Deg F; AMS Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121458
• UPC 12 Digit: 781810241011
• SKU Name: bur ams0

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
