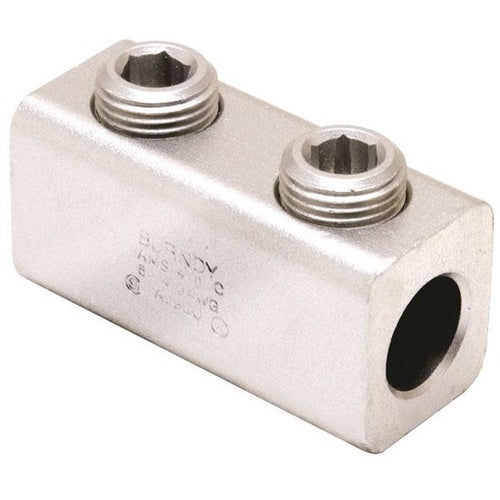

Burndy AMS-2 2-14 Dual Rated Splice

Overview

Burndy AMS-2 2-14 Dual Rated Splice

Product Specifications

• UPC: 78181024100
• Size: 1.59 Inch L x 0.56 Inch W x 1.56 Inch H
• Body Material: Tin Plated High Strength Aluminum
• Insulation Type: Non-Insulated
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Installation Torque 50 Lb-Inch
• Catalog Number: AMS2
• Model: Type AMS
• Type: In-Line with Barrier
• Minimum Conductor Size: 12 AWG (Aluminum), 12 AWG Solid (Copper), 14 AWG Stranded (Copper)
• Maximum Conductor Size: 2 AWG (Aluminum), 2 AWG Solid/Stranded (Copper)
• Conductor Material: Aluminum/Copper
• Number Of Screws: 2
• Screw Size: 3/8 Inch Dia
• Catalog Description: MECHANICAL SPLICE FOR #14-2 AWG, DUAL RATED, 2 SCREWS. SOLID CENTER BARRIER PREVENTS CONTACT OF DISSIMILAR METALS.
• Category: Large Terminals & Connectors
• Full Technical Description: In-Line With Barrier Type; 1.59 Inch L X 0.56 Inch W X 1.56 Inch H Size; 12 AWG (Aluminum), 12 AWG Solid (Copper), 14 AWG Stranded (Copper) min. Conductor Size; 2 AWG (Aluminum), 2 AWG Solid/Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; Tin Plated High Strength Aluminum Body Material; Non-Insulated Insulation Type; 3/8 Inch Dia Screw Size; 2 Screw(S); RoHS Compliant; Installation Torque 50 lb-Inch; TYPE AMS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121458
• UPC 12 Digit: 781810241004
• SKU Name: bur ams2
