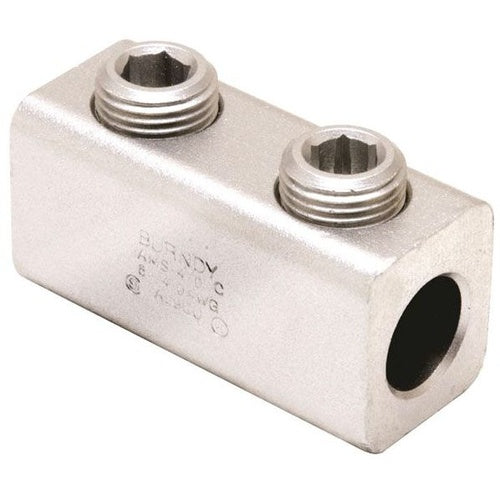

Burndy AMS-500 3/0-500 2Scr Splice

Overview

Burndy AMS-500 3/0-500 2Scr Splice

Product Specifications

• UPC: 78181024105
• Hex Size: 3/8 Inch
• Size: 4.78 Inch L x 1.25 Inch W x 1.38 Inch H
• Body Material: Tin Plated High Strength Aluminum
• Insulation Type: Non-Insulated
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Installation Torque 375 Lb-Inch
• Catalog Number: AMS500
• Model: Type AMS
• Type: In-Line with Barrier
• Minimum Conductor Size: 3/0 AWG (Aluminum), 3/0 AWG Solid/Stranded (Copper)
• Maximum Conductor Size: 500 KCMIL (Aluminum), 4/0 AWG Solid (Copper), 500 KCMIL Stranded (Copper)
• Conductor Material: Aluminum/Copper
• Number Of Screws: 4
• Screw Size: 13/16 Inch Dia
• Catalog Description: MECHANICAL SPLICE FOR 3/0 AWG-500 KCMIL, DUAL RATED, 4 SCREWS. SOLID CENTER BARRIER PREVENTS CONTACT OF DISSIMILAR METALS.
• Category: Large Terminals & Connectors
• Full Technical Description: In-Line With Barrier Type; 4.78 Inch L X 1.25 Inch W X 1.38 Inch H Size; 3/0 AWG (Aluminum), 3/0 AWG Solid/Stranded (Copper) min. Conductor Size; 500 kcmil (Aluminum), 4/0 AWG Solid (Copper), 500 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; Tin Plated High Strength Aluminum Body Material; Non-Insulated Insulation Type; 13/16 Inch Dia Screw Size; 4 Screw(S); 3/8 Inch Hex Size; RoHS Compliant; Installation Torque 375 lb-Inch; TYPE AMS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121458
• UPC 12 Digit: 781810241059
• SKU Name: bur ams500
