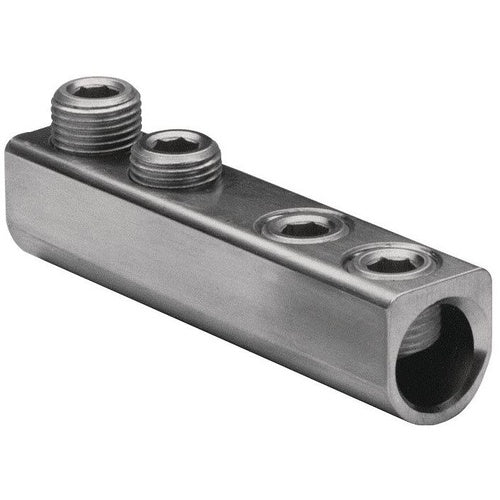

Burndy AMS-750 250-750 2Scr Splice

Overview

Burndy AMS-750 250-750 2Scr Splice

Product Specifications

• UPC: 78181024106
• Hex Size: 1/2 Inch
• Size: 6.06 Inch L x 1.44 Inch W x 1.63 Inch H
• Body Material: Tin Plated High Strength Aluminum
• Insulation Type: Non-Insulated
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Installation Torque 500 Lb-Inch
• Catalog Number: AMS750
• Model: AMS
• Type: In-Line with Barrier
• Minimum Conductor Size: 250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
• Maximum Conductor Size: 750 KCMIL (Aluminum), 750 KCMIL Stranded (Copper)
• Conductor Material: Aluminum/Copper
• Number Of Screws: 4
• Screw Size: 15/16 Inch Dia
• Catalog Description: MECHANICAL SPLICE FOR 250-750 KCMIL, DUAL RATED, 4 SCREWS. SOLID CENTER BARRIER PREVENTS CONTACT OF DISSIMILAR METALS.
• Category: Large Terminals & Connectors
• Full Technical Description: In-Line With Barrier Type; 6.06 Inch L X 1.44 Inch W X 1.63 Inch H Size; 250 kcmil (Aluminum), 250 kcmil Stranded (Copper) min. Conductor Size; 750 kcmil (Aluminum), 750 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; Tin Plated High Strength Aluminum Body Material; Non-Insulated Insulation Type; 15/16 Inch Dia Screw Size; 4 Screw(S); 1/2 Inch Hex Size; RoHS Compatible; Installation Torque 500 lb-Inch; AMS Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121458
• UPC 12 Digit: 781810241066
• SKU Name: bur ams750
