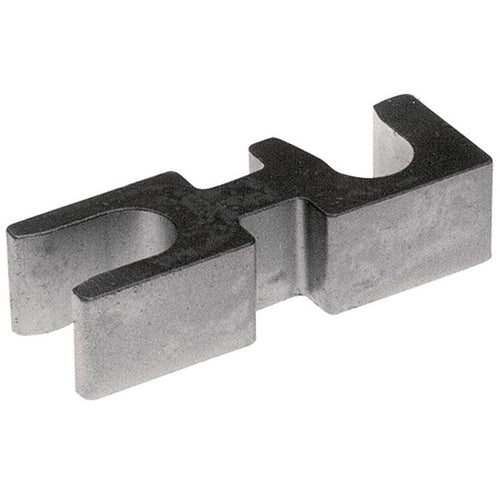

Burndy ASA1000U Terminal Stacking Adaptor

Overview

Burndy ASA1000U Terminal Stacking Adaptor

Product Specifications

• Catalog Description: TERMINAL STACKING ADAPTOR, DUAL RATED FOR AL/CU. USE WITH 2 OR 4-HOLE COPPER OR ALUMINUM TERMINALS. MAX CONDUCTOR: 1000 KCMIL, 1.49" INSULATION OD
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Aluminum Material; 3 Inch Overall Length; Aluminnum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG to 1000 kcmil (Aluminum), 1/0 AWG to 1000 kcmil Stranded (Copper) Conductor Size; HYSTACK[TM] Brand; RoHS Compatible; Bolt Size 1/2 Inch; Insulation Outer Diameter 1.49 Inch; Size 1.25 Inch H; Installation Torque 480 lb-Inch; Temperature Rating 90 Deg C; Used on Aluminum/Copper Terminals; ASA-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121408
• UPC 12 Digit: 781810521045
• SKU Name: bur asa1000u

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
