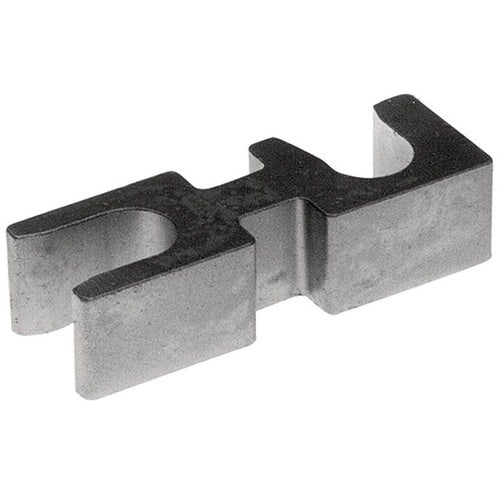

Burndy ASA800U Terminal Stacking Adaptor

Overview

Burndy ASA800U Terminal Stacking Adaptor

Product Specifications

• UPC: 78181052102
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Bolt Size 1/2 Inch; Insulation Outer Diameter 1.37 Inch; Size 1 Inch H; Installation Torque 480 Lb-Inch; Temperature Rating 90 Deg C; Used On Aluminum/Copper Terminals
• Catalog Number: ASA800U
• Brand Name: HYSTACK[TM]
• Model: ASA-U
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminnum/Copper
• Conductor Size: 1/0 AWG to 800 KCMIL (Aluminum), 1/0 AWG to 800 KCMIL Stranded (Copper)
• Material: Tin Plated Aluminum
• Overall Length: 3 Inch
• Catalog Description: COPPER STACKING ADAPTER, 2 SLOTS, 800 KCMIL, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Aluminum Material; 3 Inch Overall Length; Aluminnum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG to 800 kcmil (Aluminum), 1/0 AWG to 800 kcmil Stranded (Copper) Conductor Size; HYSTACK[TM] Brand; RoHS Compatible; Bolt Size 1/2 Inch; Insulation Outer Diameter 1.37 Inch; Size 1 Inch H; Installation Torque 480 lb-Inch; Temperature Rating 90 Deg C; Used on Aluminum/Copper Terminals; ASA-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121408
• UPC 12 Digit: 781810521021
• SKU Name: bur asa800u

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
