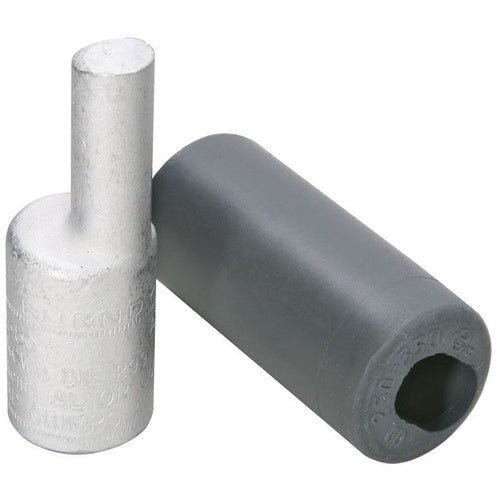

Burndy AYPO350 350 Termination Plug

Overview

Burndy AYPO350 350 Termination Plug

Product Specifications

• UPC: 78181073844
• Insulation Type: EPDM Rubber Insulated
• Pin Size: 0.57 Inch Dia x 1.34 Inch L
• Cover Size: 2.88 Inch L
• Overall Length: 3.08 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index 299; Color Code Brown
• Catalog Number: AYPO350
• Brand Name: HYLUG[TM]
• Model: Type AYPO
• Type: Offset
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 350 KCMIL
• Material: Tin Plated Aluminum
• Catalog Description: ALUMINUM COMPRESSION PIN ADAPTER, 350 KCMIL, 0.57" PLUG DIA, 1.34" PLUG LENGTH, AL/CU RATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Offset Type; Tin Plated Aluminum Material; 3.08 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 350 kcmil Conductor Size; EPDM Rubber Insulated Insulation Type; 2.88 Inch L Cover Size; 0.57 Inch Dia X 1.34 Inch L Pin Size; Hyplug Brand; RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index 299; Color Code Brown; TYPE AYPO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121448
• UPC 12 Digit: 781810738443
• SKU Name: bur aypo350

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
