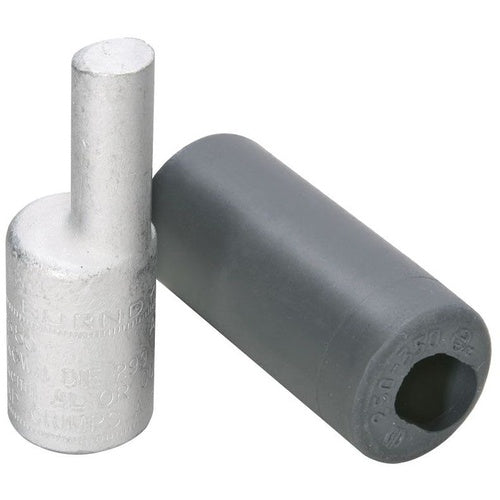

Burndy AYPO4/0 4/0 Termination Plug

Overview

Burndy AYPO4/0 4/0 Termination Plug

Product Specifications

• UPC: 78181073836
• Insulation Type: EPDM Rubber Insulated
• Pin Size: 0.42 Inch Dia x 1.22 Inch L
• Cover Size: 2.44 Inch L
• Overall Length: 2.8 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index 298; Color Code White
• Catalog Number: AYPO4/0
• Brand Name: HYLUG[TM]
• Model: Type AYPO
• Type: Offset
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 4/0 AWG Stranded
• Material: Tin Plated Aluminum
• Catalog Description: ALUMINUM COMPRESSION PIN ADAPTER, 4/0 AWG, 0.42" PLUG DIA, 1.22" PLUG LENGTH, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Offset Type; Tin Plated Aluminum Material; 2.8 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 4/0 AWG Stranded Conductor Size; EPDM Rubber Insulated Insulation Type; 2.44 Inch L Cover Size; 0.42 Inch Dia X 1.22 Inch L Pin Size; Hyplug Brand; RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index 298; Color Code White; TYPE AYPO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121448
• UPC 12 Digit: 781810738368
• SKU Name: bur aypo4/0

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
