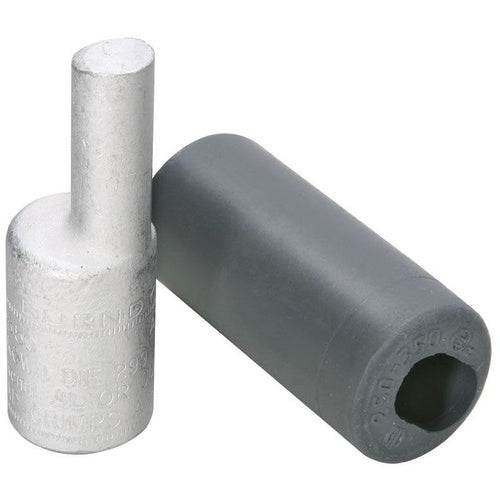

Burndy AYPO600 600 Termination Plug

Overview

Burndy AYPO600 600 Termination Plug

Product Specifications

• UPC: 78181073850
• Insulation Type: EPDM Rubber Insulated
• Pin Size: 0.73 Inch Dia x 1.64 Inch L
• Cover Size: 4.06 Inch L
• Overall Length: 4.02 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-3/4 Inch; Die Index 936; Color Code Yellow
• Catalog Number: AYPO600
• Brand Name: HYLUG[TM]
• Model: Type AYPO
• Type: Offset
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 600 KCMIL
• Material: Tin Plated Aluminum
• Catalog Description: ALUMINUM COMPRESSION PIN ADAPTER, 600 KCMIL, 0.73" PLUG DIA, 1.64" PLUG LENGTH, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Offset Type; Tin Plated Aluminum Material; 4.02 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 600 kcmil Conductor Size; EPDM Rubber Insulated Insulation Type; 4.06 Inch L Cover Size; 0.73 Inch Dia X 1.64 Inch L Pin Size; Hyplug Brand; RoHS Compliant; Wire Strip Length 1-3/4 Inch; Die Index 936; Color Code Yellow; TYPE AYPO Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121448
• UPC 12 Digit: 781810738504
• SKU Name: bur aypo600
