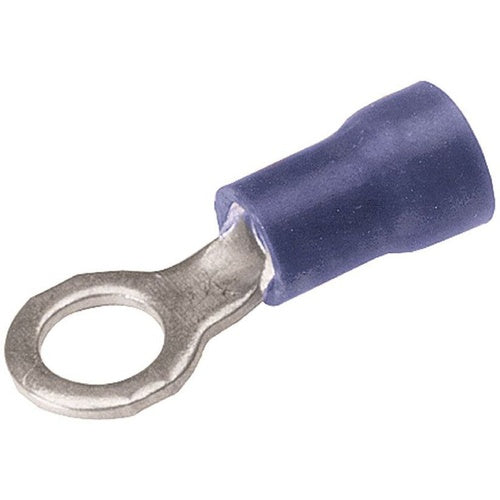

Burndy BA14E10 16-14 Insulated Ring Lug

Overview

Burndy BA14E10 16-14 Insulated Ring Lug

Product Specifications

• UPC: 78181002662
• Stud Size: #8 to #10
• Temperature Rating: 105 Deg C
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Dimension 0.85 Inch L x 0.31 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 600 V; Wire Strip Length 13/64 Inch; Maximum Insulation Diameter 0.18 Inch
• Catalog Number: BA14E10
• Brand Name: VINYLUG[TM]
• Model: BA
• Type: Funnel Entry, Light Duty
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: PVC Insulated
• Catalog Description: COPPER TERMINAL, RING TONGUE, 16-14 AWG, #8-#10 STUD, VINYL INSULATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Funnel Entry, Light Duty Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #8 to #10 Stud Size; PVC Insulated Insulation Type; VINYLUG[TM] Brand; RoHS Compatible; Dimension 0.85 Inch L X 0.31 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 600 V; Wire Strip Length 13/64 Inch; Maximum Insulation Diameter 0.18 Inch; BA Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810026625
• SKU Name: bur ba14e10
