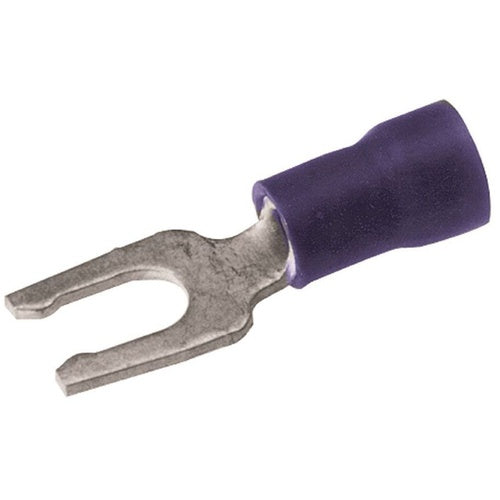

Burndy BA14EL6 16-14 Insulated Fork Lug

Overview

Burndy BA14EL6 16-14 Insulated Fork Lug

Product Specifications

• UPC: 78181002691
• Temperature Rating: 105 DEG C
• Standard Package: 1000 PER REEL
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; VOLTAGE RATING 600 V; SIZE 0.8 INCH L X 0.28 INCH W; WIRE STRIP LENGTH 13/64 INCH; MAXIMUM INSULATION DIAMETER 0.18 INCH; MATERIAL ELECTRO TIN PLATED COPPER; INSTALLATION TOOL Y10-22 PLIER, MRE1022NV/MR8-89-1/MR15 RATCHET
• Catalog Number: BA14EL6
• Brand Name: VINYLUG[T], BURNDY[R]
• Type: LOCKING
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: BLUE
• Insulation Type: POLYVINYLCHLORIDE INSULATED
• Stud Size: #4 TO #6
• Catalog Description: COPPER TERMINAL, LOCKING FORK TONGUE, 16-14 AWG, #4-#6 STUD, VINYL INSULATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Locking Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 1000 Per Reel Standard Package; #4 to #6 Stud Size; Polyvinylchloride Insulated Insulation Type; VINYLUG[T], BURNDY[R] Brand; RoHS Compatible; Voltage Rating 600 V; Size 0.8 Inch L X 0.28 Inch W; Wire Strip Length 13/64 Inch; Maximum Insulation Diameter 0.18 Inch; Material Electro Tin Plated Copper; Installation Tool Y10-22 Plier, MRE1022NV/MR8-89-1/MR15 Ratchet
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Fork Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810026915
• SKU Name: bur ba14el6
