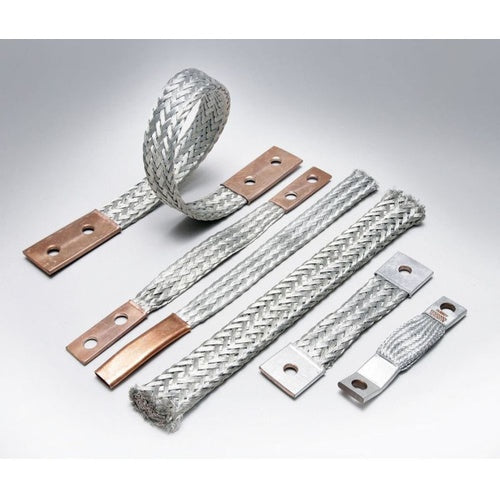

Burndy BD18N 1Str Flexible Copper Braid

Overview

Burndy BD18N 1Str Flexible Copper Braid

Product Specifications

• UPC: 78181080722
• Ferrule Material: Seamless Copper
• Hole Diameter: 0.56 Inch
• Hole Spacing: 1.75 Inch
• Approval: UL, UL 467, CSA C22.2
• Additional Information: RoHS Compliant; Number of Braid 1; Wire Size 1 AWG
• Catalog Number: BD18N
• Model: B
• Current Rating: 190 Amp Indoor, 225 Amp Outdoor
• Length: 18 Inch
• Width: 0.94 Inch
• Thickness: 0.13 Inch
• Ferrule Length: 3 Inch
• Braid Material: Tin Plated Copper
• Catalog Description: FLEXIBLE COPPER BRAID, 18 IN L, FLEXIBLE COPPER BRAID JUMPERS DESIGNED TO TAKE UP LINEAR EXPANSION AND CONTRACTION.
• Category: Ground Rods & Grounding Systems
• Full Technical Description: 18 Inch; 0.94 Inch; 3 Inch Ferrule Length; UL, UL 467, CSA C22.2 Approval; 0.13 Inch Thickness; 190 Amp Indoor, 225 Amp Outdoor Current Rating; 0.56 Inch Hole Diameter; Seamless Copper Ferrule Material; 1.75 Inch Hole Spacing; Tin Plated Copper Braid Material; Braid Jumper Brand; RoHS Compliant; Number of Braid 1; Wire Size 1 AWG; B Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Grounding Flexible Braid Jumper
• Unspsc: 39121408
• UPC 12 Digit: 781810807224
• SKU Name: bur bd18n
