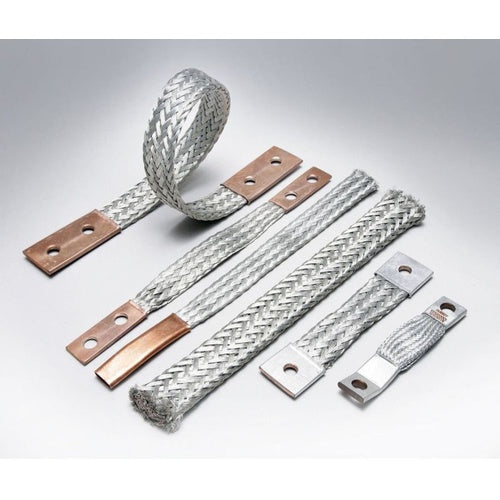

Burndy BD24N 1Str Flexible Copper Braid

Overview

Burndy BD24N 1Str Flexible Copper Braid

Product Specifications

• UPC: 78181080723
• Ferrule Material: Seamless Copper
• Hole Diameter: 0.56 Inch
• Hole Spacing: 1.75 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Number of Braid 1; with 2 Hole NEMA Drilled Ferrule
• Catalog Number: BD24N
• Model: B
• Current Rating: 190 Ampere (Indoor), 225 Ampere (Outdoor)
• Length: 24 Inch
• Width: 0.94 Inch
• Thickness: 0.13 Inch
• Ferrule Length: 3 Inch
• Braid Material: Tinned Copper
• Catalog Description: FLEXIBLE COPPER BRAID, 24 IN L, FLEXIBLE COPPER BRAID JUMPERS DESIGNED TO TAKE UP LINEAR EXPANSION AND CONTRACTION.
• Category: Ground Rods & Grounding Systems
• Full Technical Description: 24 Inch; 0.94 Inch; 3 Inch Ferrule Length; UL, CSA Approval; 0.13 Inch Thickness; 190 Ampere (Indoor), 225 Ampere (Outdoor) Current Rating; 0.56 Inch Hole Diameter; Seamless Copper Ferrule Material; 1.75 Inch Hole Spacing; Tinned Copper Braid Material; Braid Jumper Brand; RoHS Compatible; Number of Braid 1; With 2 Hole NEMA Drilled Ferrule; B Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Grounding Flexible Braid Jumper
• Unspsc: 39121408
• UPC 12 Digit: 781810807231
• SKU Name: bur bd24n
