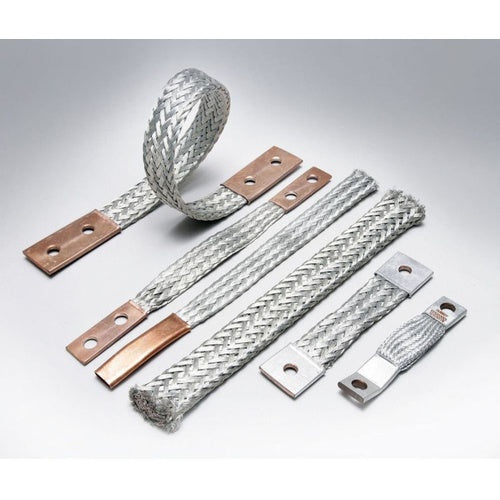

Burndy BE12N 1Str Flexible Copper Braid

Overview

Burndy BE12N 1Str Flexible Copper Braid

Product Specifications

• UPC: 78181000513
• Ferrule Material: Seamless Copper
• Hole Diameter: 0.56 Inch
• Hole Spacing: 1.75 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Number of Braid 1; with 2 Hole NEMA Drilled Ferrule
• Catalog Number: BE12N
• Model: B
• Current Rating: 340 Ampere (Indoor), 405 Ampere (Outdoor)
• Length: 12 Inch
• Width: 1.5 Inch
• Thickness: 0.17 Inch
• Ferrule Length: 3 Inch
• Braid Material: Tinned Copper
• Catalog Description: FLEXIBLE CU BRAID JUMPER, 2 HOLES 2 FERRULES, 1.75" SPACING, 12" L, 340 AMPS INDOOR, 405 AMPS OUTDOOR
• Category: Ground Rods & Grounding Systems
• Full Technical Description: 12 Inch; 1.5 Inch; 3 Inch Ferrule Length; UL, CSA Approval; 0.17 Inch Thickness; 340 Ampere (Indoor), 405 Ampere (Outdoor) Current Rating; 0.56 Inch Hole Diameter; Seamless Copper Ferrule Material; 1.75 Inch Hole Spacing; Tinned Copper Braid Material; Braid Jumper Brand; RoHS Compatible; Number of Braid 1; With 2 Hole NEMA Drilled Ferrule; B Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Grounding Flexible Braid Jumper
• Unspsc: 39121408
• UPC 12 Digit: 781810005132
• SKU Name: bur be12n

Resources

• Technical Drawing
• Manufacturer Spec Sheet
